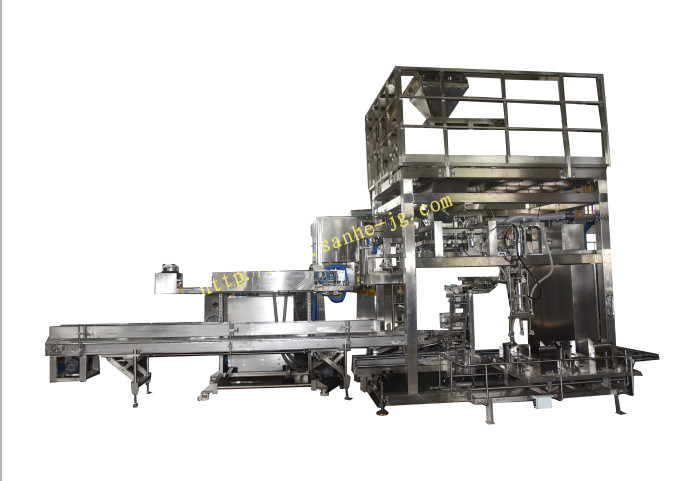

OPAL Open Mouth Bag Bagging and Palletizing System

OPAL Open Mouth Bag Bagging and Palletizing System

OPAL Open Mouth Bag Bagging and Palletizing System
  • OPAL Open Mouth Bag Bagging and Palletizing System
Product Details:
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: ISO9001:2015, CE
Model Number: OPAL Open Mouth Bag Bagging and Palletizing System
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wood Pallet
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: 90 Sets Per Month
Contact Now
Detailed Product Description
Product Name: Open Mouth Bag Packer And Palletizing Function: Open Mouth Bag Automatic Packing And Palletizing
Power Supply: Electric Weighing Accuracy: Generally (+/- ) 0.2%
Weighing Range(kg): 250-500 / 500-1500 Kg Suite For: Non-sticky Powder Or Particles.
High Light:

open mouth bagging equipment

,

open mouth bag filling machines

OPAL Open Mouth Bag Bagging and Palletizing System

A. What is 25 kg electronic packing scale:

Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.


B. Working principle of 25 kg electronic packaging scale:

When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;

At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.

The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.


C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.



D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine



OPAL Open Mouth Bag Automatic Packing and Palletizing Line

Broad Category:Open Mouth Bag Automatic Packing and Palletizing Line
Name: Open Mouth Bag Automatic Packing and Palletizing Line



1.Scope of application :
1)Applicable material:
   Non-sticky powder or particles.

2)Applicable filling containers:
   Open mouth bag .


2. Models and Technical parameters :



Item



Short Name



Model Number



Capacity (bags/hour)

1)


High speed type for granule


OAPL-1200-25(2)



1200

2)


Medium speed type for granule


OAPL-800-25(2)



800

3)


Low speed type for granule


OAPL-300-25



300

4)


Simple type for granule


OAPL-150-25



150

5)


High speed type for powder


OAPL-600-25F(2)



600

6)


Medium speed type for powder



OAPL-450-25F



450

7)


Low speed type for powder



OAPL-300-25F



300

8)

Simple type for powder


OAPL-150-25F



150




3. Main Equipments composition :




Item



Equipment



Quantity

1)


Automatic open mouth bag packer

1 or 2

2)


Automatic empty bag feeder

1

3)


Metal detector

1

4)


Weight checker

1

5)


Rejector

1

6)


Filled bag reshaping Conveyor

1

7)


conveyor

Several

8)


Pallet magazine(include pallet feeder)

1

9)


Robot

1

10)


Power cabinet and Control cabinet

1



4.Functions and Characteristics  :

1) High degree of automation, Manually only need to put empty bags into the automatic empty bag feeder, empty pallets into the pallet magazine, all other processes are automatically completed by the equipments. The specific automation processes is as follows:

Automatic empty bag feeding;

Automatic weighing and filling;

Automatic valve mouth sealing;

Automatic filled bag unloading;

Automatic conveying;

Automatic metal detection;

Automatic weight check;

Automatic rejection;

Automatic filled bag shaping;

Automatic palletizing;

Automatic stack exit.

2) It is also possible to adopt a combination of three automatic packers and a automatic empty bag feeder to increase capacity.

3) Perfect dedustinging system ensures that no dust escapes to pollute the environment during packaging.
