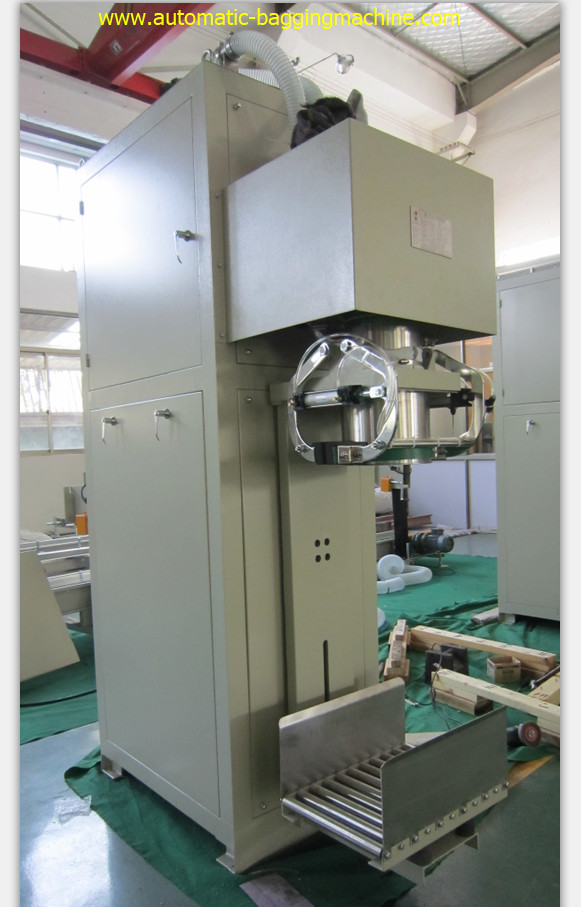

Automatic particles & powder weigher weighing and packing filling machine
A. What is 25 kg electronic packing scale:
Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.
B. Working principle of 25 kg electronic packaging scale:
When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;
At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.
The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.
C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.
D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine
The parameter and function table :
|DCS-25FW Screw Type Packing Machine|
|Scope of application|
|Suitable materials||Granular Material, Powder, Mixture (Particle / Powder mix)|
|Suitable packing container||Open mouth bag, box, barrel|
|Alternative feeding type|
|Packing speed||100-120 bags/Hour|
|Packing Accuracy||Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)|
Used for Medicine industry, food additives industry etc.
Component parts :
Arc feeding mechanism
Dust removal interface
Bag clamping device
Relative machine :
Heat sealing machine
Heat seal conveyor
Sewing bag conveyor
Reshaping machine ( flatner )
It can realize the function of fast feeding and slow feeding, so ensure the accuracy of packing .
Please Send us The Details for Quatation :
|Automatic over weight alarms||○||○||○||○|
|Manual adjusting the height of bag||○||○||○||○|
|Important auxiliary function|
|Arch break function of hopper||×||○||○||○|
|Vibration at the bottom of the bag||▲||▲||▲||▲|
|Negative pressure dusting(not contain duster)||▲||○||○||○|
|Valve for leak-proof||×||▲||▲||▲|
|ionic wind remove static||▲||▲||▲||▲|
|when lose power||○||○||○||○|
|Mark: “○”is standard function；“▲”is choose function ；“×”is not has function|
