Main characteristic :
Suit for all kind of can or drum automatic filling.
Can make into signal or multi- filling line to improving the capacity.
The parameter and function table
|
DCS-50LSTW–AL can liquid filling line(big filing mouth upon liquid surface filling)
|
Scope of application
|
|
Suitable materials
|
10-50L
|
Feeding type
|
Upon liquid surface filling
|
Alternative feeding type
|
Under liquid surface filling
|
Technical parameters
|
|
Number of filling machine
|
1
|
Maximum weighing(Kg)
|
100
|
Filling speed(pails/H, cans/H, drums/H IBCs/H)
(dimension of filling lance is DN40, Material supply speed must more than 208L/H)
|
200-300
(30liter/drum)(signal filling machine)
|
Filling accuracy
|
Generally (+/- )0.2%
(Note:1,if material supplying not instability will effect to filling accuracy.2, special material according to industrialstandard)
|
Appication :

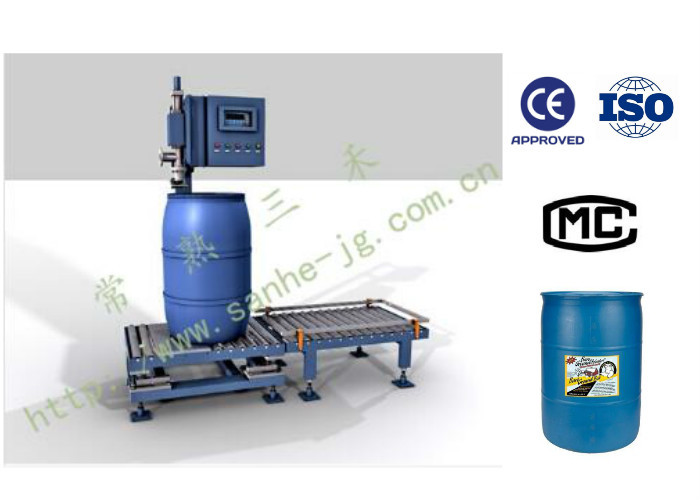

Drum Filling Machine is based on weighing scale to measure liquid weight filled into all kinds of containers, such as drum, IBC etc.
Widely used in chemical, food, pesticide industries etc.
Suitable for filling Coating, paint, printing ink, adhesive, curing agent, resin, dye, detergent, oil, glycerin, lubricating oil, edible oil, essence, solvents, additives, food additives, pesticides and other hazardous chemical products etc.
