Product Details:
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: ISO9001:2015, CE
Model Number: packing & palletizing Line
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wood Pallet
Delivery Time: Negotiable
Payment Terms: T/T
Supply Ability: 30 Set Per Month
Contact Now
Detailed Product Description
Product Name: Packing & Palletizing Line Weighing Range: 25 Kg Per Bag
Packing Speed: 800-1200 Bags Per Hour Packing Accuracy: Generally (+/- )0.2%
Powder: Electric Origin: Suzhou
High Light:

Weighing Filling Packing Palletizing Line

,

Fertilizer Palletizing Line

,

25kg Fertilizer Packing Machine

fully automatic bagger line automatic fertilizer bagging system automatic fertilizer bagging plant



advantage of automatic weighing packing machine:

1.Just need connect the to the customer's hopper to our our packing machine buffer hopper, Or use the elevator to lift the materials from the ground to our packing machine buffer hopper .

This not only saves labor costs for enterprises, but also improves work productivity.

2. Different products have different feeding methods:

There are gravity arc door feeding, screw feeding , air flow feeding,

3. Electronic packaging scale is mainly applicable to automatic quantitative packaging of various granular materials, such as metering packaging of various granular materials such as soybean meal, feed, seed, building materials, compound fertilizer, chemical raw materials, etc.

4. The electronic packaging scale is easy to clean and maintain, with few transmission parts , low failure rate.

5. fast packing speed, high weight accuracy, low dusting.

6. The contact part of the electronic packaging scale is made of stainless steel, which has strong corrosion resistance, high hygiene standards and long service life of the equipment.

7. High precision weighing sensor: grade 0.2 weighing sensor is selected. Intelligent weighing display controller: high resolution, high-speed A / D conversion, weighing out of tolerance, zero out of tolerance alarm, various standard data communication interfaces, etc.

8. Composition of big bag weighing packing machine:
A. Buffer hopper ( in order to provide a Continuous and stable material flow) ;
B. Weighing part: through the weighing load cell ;
C. Feeding part ( arc door feeding / screw feeding / air flow feeding / Impeller feeding , available )
D. Unloading part;

9.Load cell and digital weighing controller. Automatically start, Automatically tare, Automatically free fall compensation.



Scope of application:

Applicable material:

Non-sticky powder or particles

Applicable filling containers

Open mouth bag .



Models and Technical parameters:





Item



Short Name



Model Number



Capacity(bags/hour)





High speed type for granule



OAPL-1200-25(2)



1200





Medium speed type for granule



OAPL-800-25(2)



800





Low speed type for granule



OAPL-300-25



300





Simple type for granule



OAPL-150-25



150





High speed type for powder



OAPL-600-25F(2)



600





Medium speed type for powder





OAPL-450-25F



450





Low speed type for powder





OAPL-300-25F



300





Simple type for powder



OAPL-150-25F



150





Main Equipments composition



Item



Equipment



Quantity





Automatic open mouth bag packer

1 or 2




Automatic empty bag feeder

1




Metal detector

1




Weight checker

1




Rejector

1




Filled bag reshaping Conveyor

1




conveyor



Several





Pallet magazine(include pallet feeder)

1

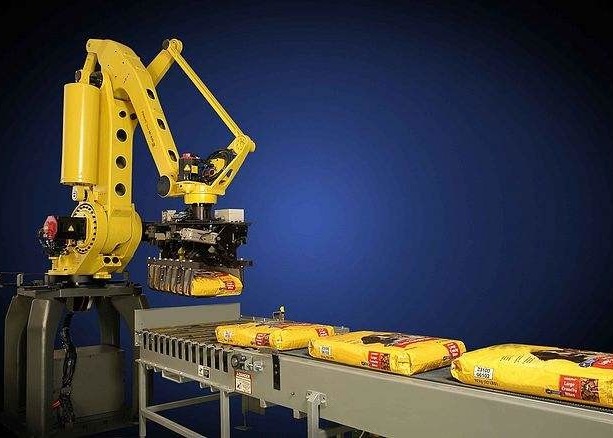

Robot

1




Power cabinet and Control cabinet

1



Functions and Characteristics:



High degree of automation, Manually only need to put empty bags into the automatic empty bag feeder, empty pallets into the pallet



magazine, all other processes are automatically completed by the equipments. The specific automation processes is as follows:



Automatic empty bag feeding;

Automatic weighing and filling;

Automatic valve mouth sealing;

Automatic filled bag unloading;

Automatic conveying;

Automatic metal detection;

Automatic weight check;

Automatic rejection;

Automatic filled bag shaping;

Automatic palletizing;

Automatic stack exit.



It is also possible to adopt a combination of three automatic packers and a automatic empty bag feeder to increase capacity.



Perfect dedustinging system ensures that no dust escapes to pollute the environment during packaging.
