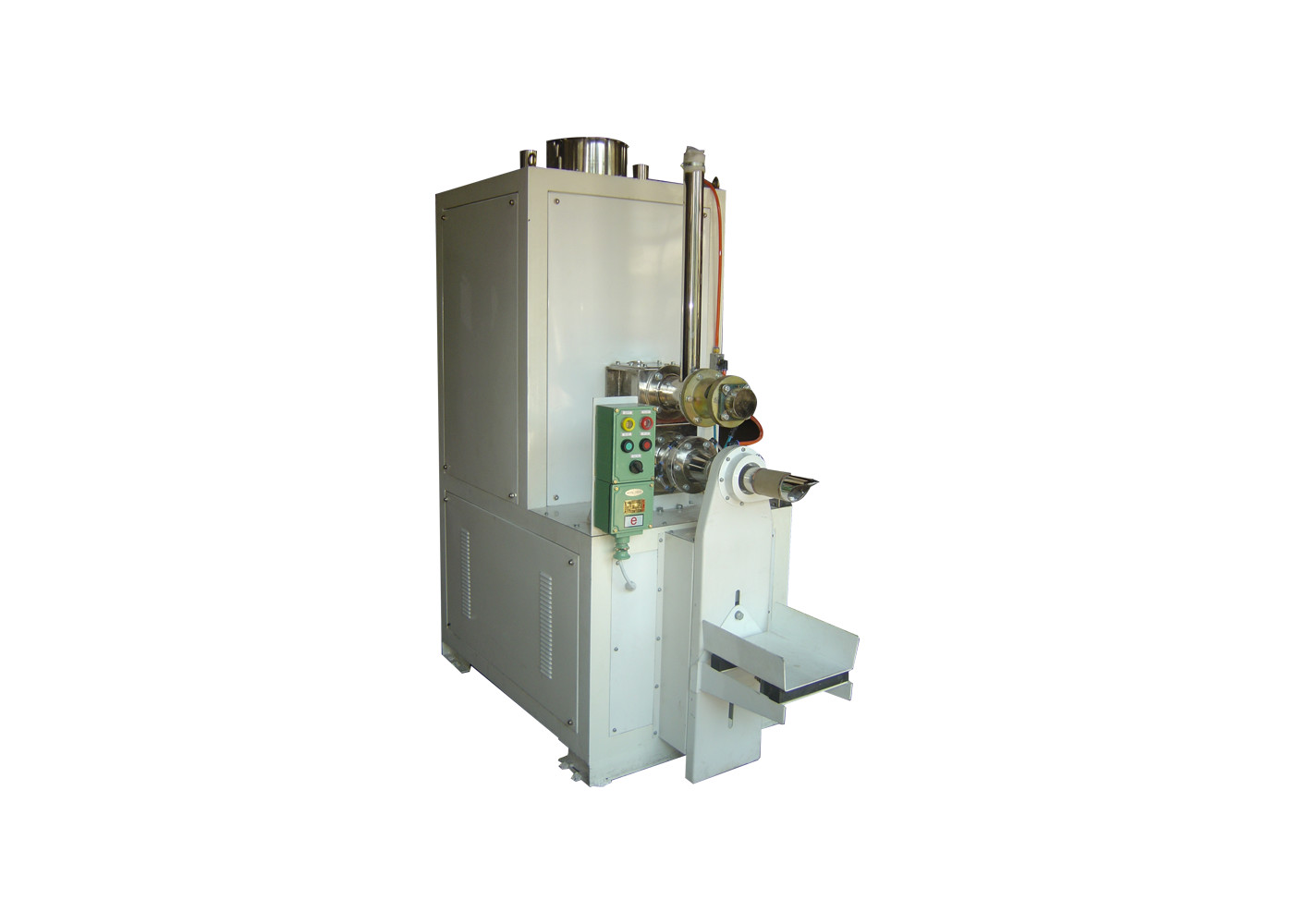

25kg Valve Bag Weighing And Bagging Machine
The parameter and function table of the valve bag packer:
|
DCS-25PV1(1) (exhausting type) |
DCS-25PV1(2) (screw type) |
DCS-25PV1(3) (airflow type) |
DCS-25PV1(5) (horizontal impeller) |
DCS-25PV1(6) (vertiacl impeller) |
|
|
Scope of application |
|||||
|
Suitable materials |
Powder and ultrafine powder of good Air affinity |
Powder and thin granule |
Powder and thin granule |
Powder and ultrafine powder |
Powder and ultrafine powder |
|
Suitable packing container |
Upper and lower spiral air supply | single screw | air flow | Horizontal impeller | Vertical impeller |
|
Technical parameters |
|||||
|
Weighing range(Kg) |
10-50 | 10-50 | 10-50 | 10-50 | 10-50 |
|
Packing speed(bag/H) |
30-180 | 30-120 | 30-200 | 30-250 | 30-250 |
|
Packing Accuracy |
Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard) |
||||
|
Control function |
|||||
|
Automatic tare |
○ | ○ | ○ | ○ | ○ |
|
Automatic quick and slow feeding |
○ | ○ | ○ | ○ | ○ |
|
Automatic free fall compensation |
○ | ○ | ○ | ○ | ○ |
|
Automatic minus deviation |
▲ | ▲ | ▲ | × | × |
|
Automatic over weight alarms |
○ | ○ | ○ | ○ | ○ |
|
Automatic self diagnosis failure |
○ | ○ | ○ | ○ | ○ |
|
Manual/Automatic mode conversation |
○ | ○ | ○ | ○ | ○ |
|
Communication port |
▲ | ▲ | ▲ | ▲ | ▲ |
|
|
|||||
|
Manual adjusting the height of bag |
○ | ○ | ○ | ○ | ○ |
|
Suit for open and valve bag function |
▲ | ▲ | ▲ | ▲ | ▲ |
|
Important auxiliary function |
|||||
|
Blow bag function in advance |
○ | ▲ | ○ | ○ | ○ |
|
Arch break function of hopper |
○ | ○ | ○ | ○ | ○ |
|
Vibration at the bottom of the bag |
○ | ○ | ○ | ○ | ○ |
|
Powder protection |
|||||
|
Inflatable seal |
▲ | × | ▲ | × | × |
|
Negative pressure dusting(not contain duster) |
○ | ○ | ○ | ○ | ○ |
|
Automatic blow valve mouth |
○ | × | ○ | ▲ | ▲ |
|
Safety protection |
|||||
|
Electrostatic grounding |
▲ | ▲ | ▲ | ▲ | ▲ |
|
|
▲ | ▲ | ▲ | ▲ | ▲ |
|
Stop packing when lose power |
○ | ○ | ○ | ○ | ○ |
|
Emergency stop |
○ | ○ | ○ | ○ | ○ |
|
Ex-proof |
▲ | ▲ | ▲ | ▲ | ▲ |
|
Mark: “○”is standard function；“▲”is choose function ；“×”is not has function |
|||||
main features:
*valve bag packing for Powder and ultrafine powder.
*Can be twin-type packer
*Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.
