Linear Vibrating Screen Equipment For Pharmaceutical
1 Set
MOQ
Negotiable
Price
Linear Vibrating Screen Equipment For Pharmaceutical
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: ISO9001:2015, CE
Model Number: Linear Vibrator Screen
High Light:

Linear Vibrator Screen

,

Pharmaceutical Vibrating Screen Equipment

,

960r/min Vibrating Screen Equipment

Payment & Shipping Terms
Packaging Details: Wood pallet , The pallet size is customized according to different products
Delivery Time: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 90 Sets Per Month
Specifications
Product Name: Linear Vibrator Screen
Usege: Chemical, Food, Ceramics, Power Station, Metallurgy, Mining, Building Materials And Other Industries
Certification: ISO9001:2015, CE
Brand: Sanhe
Feature: Easy-to-clean, Hygienic Design.
Advantage: Energy And Space-saving
Product Description

1. Linear Vibrator Screen / Vibrating Screen Equipment for Pharmaceutical



Linear Vibrator Screen is a kindly of standard and universal screening machine. It consists of screen frame(screen box), supporting or hanging device, driving device, vibration isolation and other parts.
2. With two vibrating motors mounted on both sides of the machine body, or mounted on the bottom base of the machine body, this make the materials running a straight trace on the sieve to finish the screening work.
3. Special custom-made service are available, you just need to tell us your detailed requirements, such as type of material, required processing capacity, mesh size, your local power voltage, Hz, Phase etc.
4. Spare parts for free within 12 months warranty period. Our engineers and sales also provide online real time supports through Skype, MSN etc.

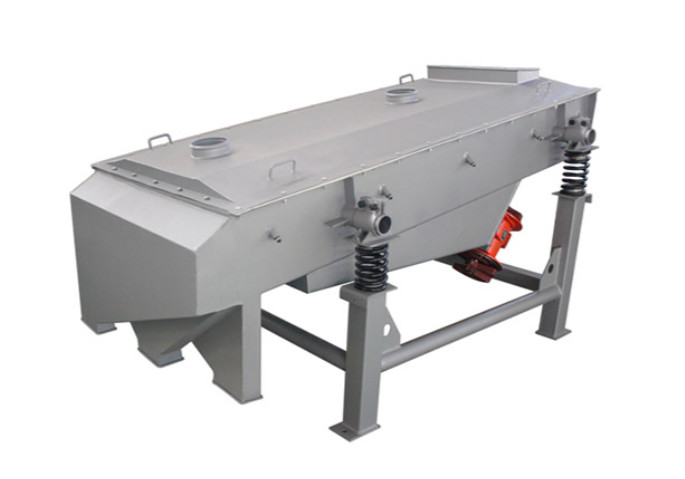

Linear Vibrating Screen Equipment For Pharmaceutical 0

WORKING PRINCIPAL

Linear vibrating screen is designed with dual-vibration motor drive.When two vibrating motors rotate reversely in synchronous,the eccentric produce exciting force to offset each other on the parallel direction of motor axis,and stack together with the perpendicular direction of motor axis,so its trajectory is linear.There is a dip on the screen surface where two motor shaft facing to.With the joint effect of vibrating force and material self-gravity,material on screen surface will be tossed forward in rectilinear motion,hence material can be screening and grading.

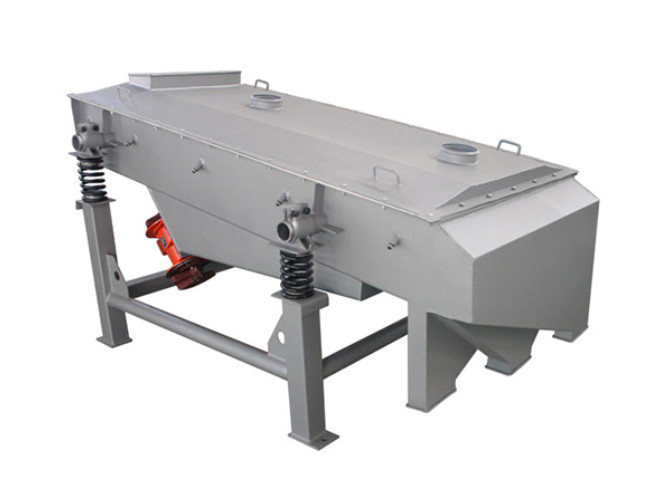

Linear Vibrating Screen Equipment For Pharmaceutical 1

APPLICATION
*- Food Industries: sugar powder,monosodium, salt, starch, animal feed etc.
*- Chemical Industries: fertilizer, detergent powder, talcum powder,CPE powder etc.

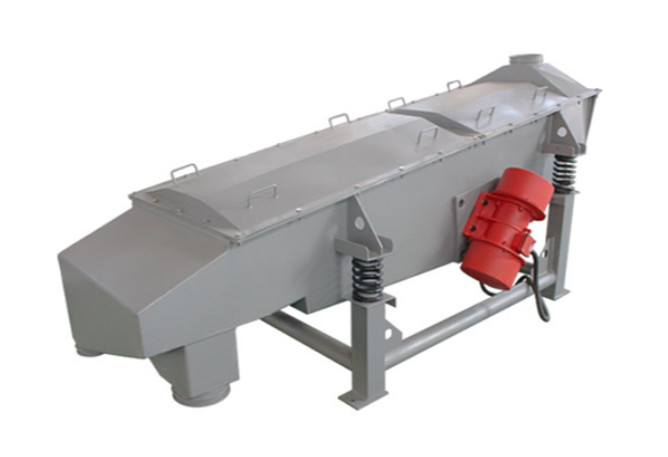

*- Grinding Material And Ceramic Industries: alumina, quartz, slurry, carborundum etc.Linear Vibrating Screen Equipment For Pharmaceutical 2
PRODUCT PARAMENTERS

Linear Vibrating Screen Equipment For Pharmaceutical 3

DETAILED IMAGES

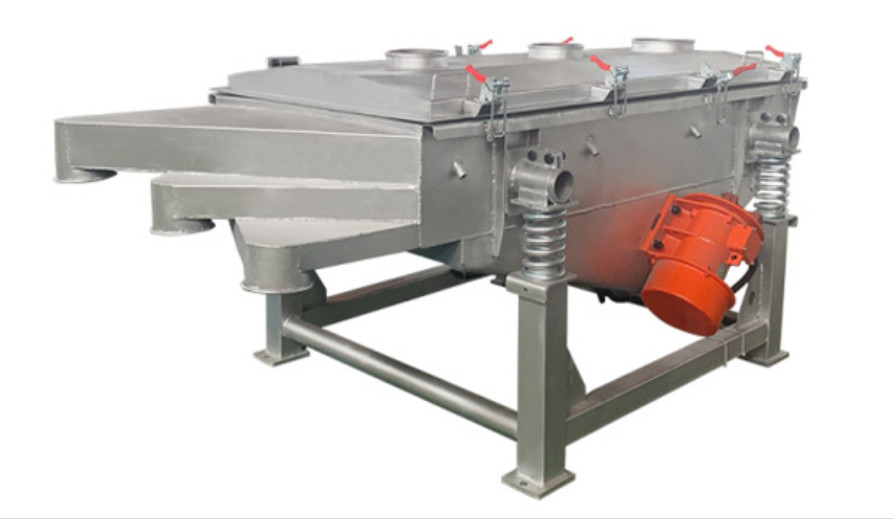

Linear Vibrating Screen Equipment For Pharmaceutical 4

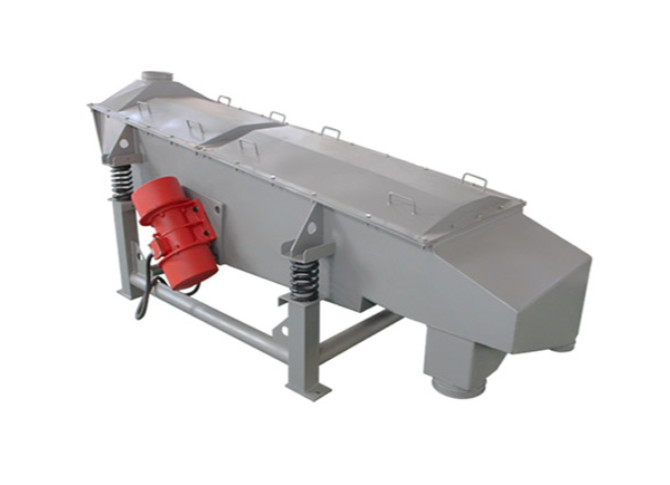

Linear Vibrating Screen Equipment For Pharmaceutical 5

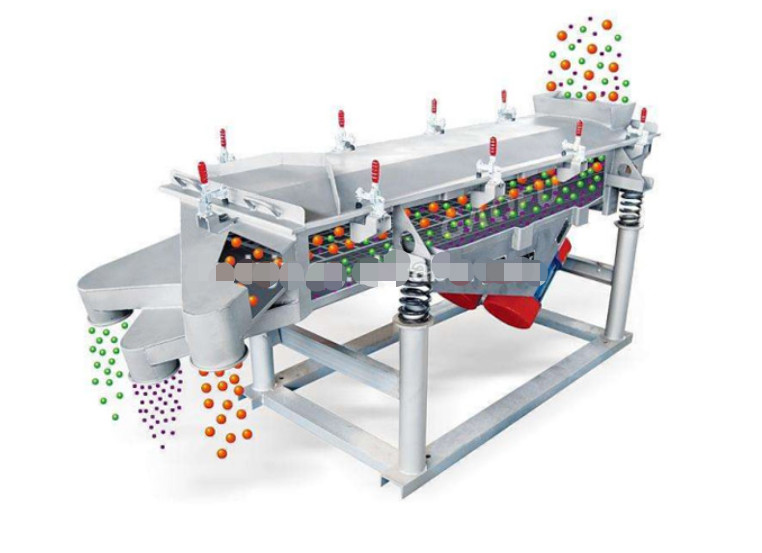

Linear Vibrating Screen Equipment For Pharmaceutical 6
