Ps Flow Thru Separator 1450r/Min High Efficient Screening
1 Set
MOQ
Negotiable
Price
Ps Flow Thru Separator 1450r/Min High Efficient Screening
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: ISO9001:2015, CE
Model Number: PS FLOW-THRU SEPARATOR
High Light:

Flow Thru Separator Auxiliary Equipment

,

1450r/Min Flow Thru Separator

,

1450r/Min Screening Machine

Payment & Shipping Terms
Packaging Details: Wood pallet , The pallet size is customized according to different products
Delivery Time: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 90 Sets Per Month
Specifications
Product Name: PS FLOW-THRU SEPARATOR
Usege: Chemical, Food, Ceramics, Power Station, Metallurgy, Mining, Building Materials And Other Industries
Certification: ISO9001:2015, CE
Brand: Sanhe
Feature: Easy-to-clean, Hygienic Design.
Advantage: Energy And Space-saving
Product Description

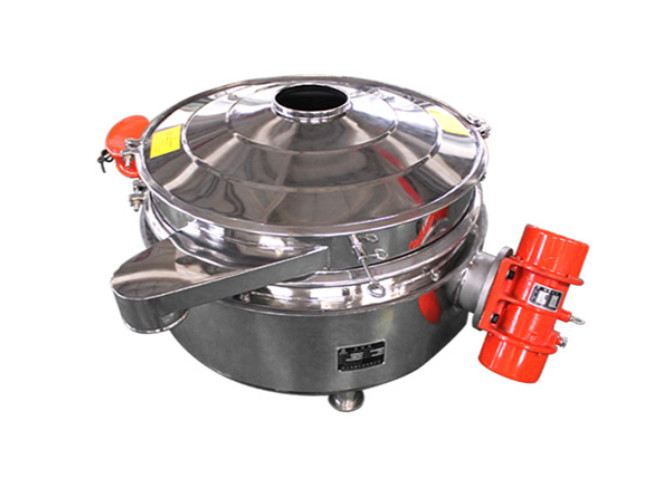

PS FLOW-THRU SEPARATOR

PS series flow-thru separator is a kind of new-type,high_efficient screening machine.It offers high capacity wet or dry scalping in a compact,low head room design.Double motors mounted on opposite of body create the 3-D motion that allows maximum flow-thru of material.This machine is ideally suited for prepackaging screening in many food and pharmaceutical applications,as well as for bulk bag unloading and screening of raw ingredients.Ps Flow Thru Separator 1450r/Min High Efficient Screening 0

WORKING PRINCIPLE
Through the motor vibration to produce excitation force, by adjusting the motor at both ends of the eccentric hammer weight and phase angle can change the size of the exciting force, effectively change the material trajectory, to extend the material on the screen surface to stay
TECHNICAL PARAMETERS
Model Diameter
(mm)
Mesh Power
(kw)
Speed
(r/min)
Amplitude
(mm)
DZPS-600 600





5-100

0.1*2





1450





3-5

DZPS-800 800 0.2*2
DZPS-1000 1000 0.2*2
DZPS-1200 1200 0.4*2
DZPS-1500 1500 0.4*2



HOW TO PROVIDE US THE DETAILED NEED.( IMPORTANT!!)
– Material (name) that you want to process, with the bulk density, water content(%).
– The necessary process capacity (per hour)- Material contact part, SS304, SS316L and Q235 for option.- The different dimension of the machine can be designed for you.
– Additional parts, like the Mobile wheel and noise-proof base, can be easily fixed and maintained.



>APPLICATION

Ps Flow Thru Separator 1450r/Min High Efficient Screening 1

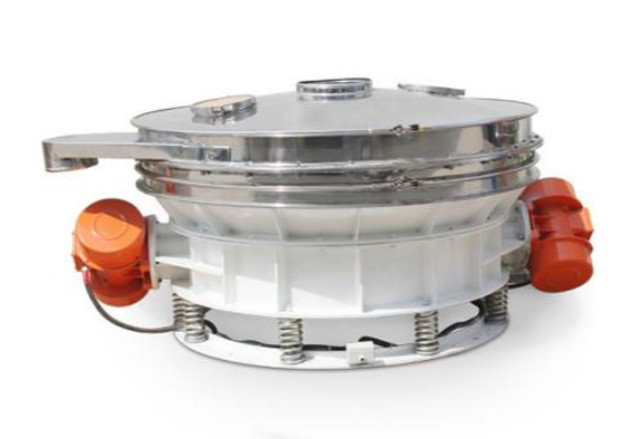

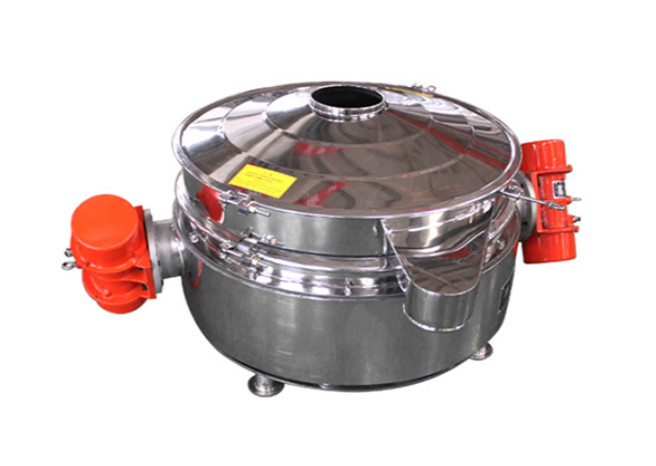

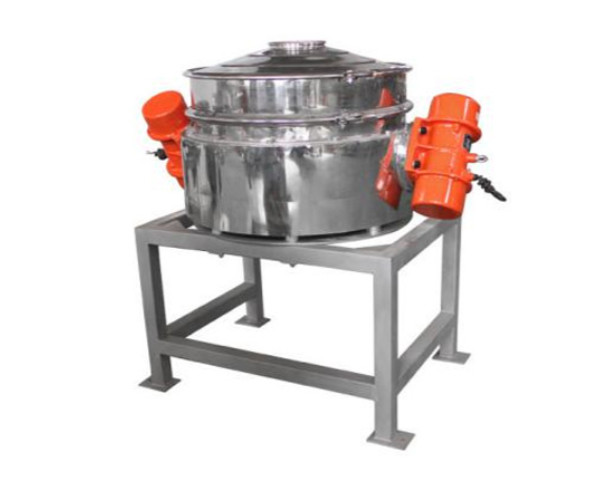

DETAILED IMAGES

Ps Flow Thru Separator 1450r/Min High Efficient Screening 2

CUSTOMIZED MODULE: MACHINE COLOR/MACHINE DIAMETER/SIZE OF COVER OPENING/MACHINE HEIGHT

Ps Flow Thru Separator 1450r/Min High Efficient Screening 3



CUSTOMER SITE

Ps Flow Thru Separator 1450r/Min High Efficient Screening 4



PACKING & DELIVERY

Ps Flow Thru Separator 1450r/Min High Efficient Screening 5
