Shfy Linear Tumbler Screen Space Saving For Chemical
1 Set
MOQ
Negotiable
Price
Shfy Linear Tumbler Screen Space Saving For Chemical
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: ISO9001:2015, CE
Model Number: SHFY LINEAR TUMBLER SCREEN
High Light:

Shfy Linear Tumbler Screen

,

Gyratory Sifter Auxiliary Equipment

,

Space Saving Tumbler Screen

Payment & Shipping Terms
Packaging Details: Wood pallet , The pallet size is customized according to different products
Delivery Time: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 90 Sets Per Month
Specifications
Product Name: SHFY LINEAR TUMBLER SCREEN
Usege: Chemical, Food, Ceramics, Power Station, Metallurgy, Mining, Building Materials And Other Industries
Certification: ISO9001:2015, CE
Brand: Sanhe
Feature: Easy-to-clean, Hygienic Design.
Advantage: Energy And Space-saving
Product Description

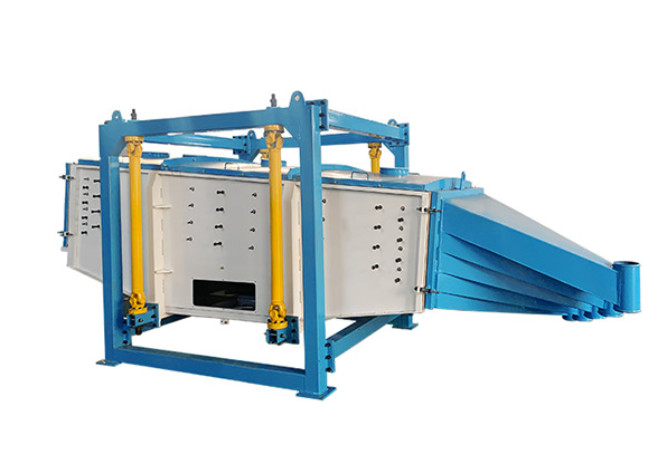

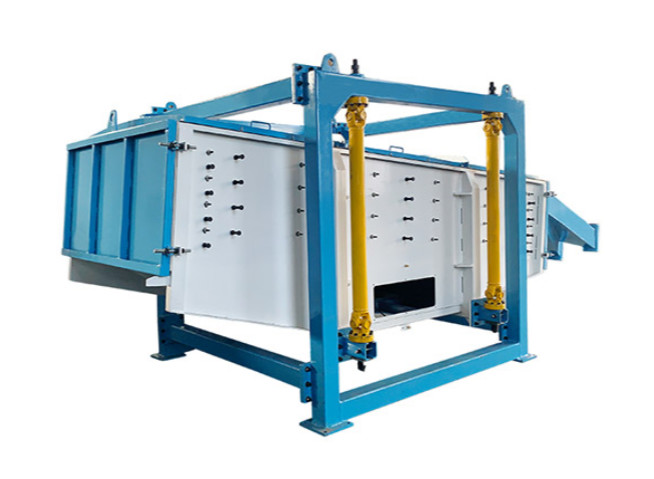

SHFY LINEAR TUMBLER SCREEN

Gyratory sifter is one kind of high efficiency and large capacity sieving equipment. Users can realize high-output sieving needs of different materials by simply increasing or decreasing the spindle speed and the excitation force of machines.Gyratory sifter adopts a fully enclosed structure, which is easy to install and control. The general design is 3 ~ 5 layers, and it can grade 4 ~ 6 sizes of materials in the same time. Users can install the number of screen layers as required.

WORKING PRINCIPLE
The working principle of the Gyratory sifter is: after the swing sieve is started, the shaking body of the equipment, that is, the sieve box reciprocates back and forth under the action of inertia, and the sieve box and the sieve surface are periodically shaken, so that the material on the sieve surface With the screen box for directional jumping movement. During this period, the material smaller than the screen hole falls to the lower layer through the screen hole and becomes the under-screen. The material larger than the screen hole diameter is discharged from the discharge port after continuous tumbling and jumping movement, there completing the screening work.
PRODUCT PARAMETERS
Model DZFY-1230 DZFY-1236 DZFY-1536 DZFY-1836 DZFY-2036
Mesh size(mm) 1200×3000 1200×3600 1500×3600 1800×3600 2000×3600
Inclination
Mesh 6mm – 0.075mm(200# mesh)
Layer(s) 1-9
Power(kw) 4 4 5.5 7.5 7.5



APPLICATION

Gyratory Sifter is widely used in metallurgy, abrasive, non-ferrous metals, chemical, food, and other industries, especially for screening heavy alkali, sand,silica sand,salt, resin, fertilizer, urea, feed, reduced iron powder, zirconium oxide,ceramic, barite and etc.Shfy Linear Tumbler Screen Space Saving For Chemical 0

PRODUCT ADVANTAGES:
Reasonable design, long service life: reasonable design, simple structure, stable operation; energy savingand environmental protection, long service life, high screening accuracy, simple operation, in line with global users’ production process requirements.
2. Precise positioning: precise positioning, professional engineer design, combination of multiple styles, can effectively screen particles, powders, and slurries.
3. Complete variety: complete variety, single layer and multiple layers can be selected at random, the outlet can be rotated 360° at will, suitable for continuous assembly line production.

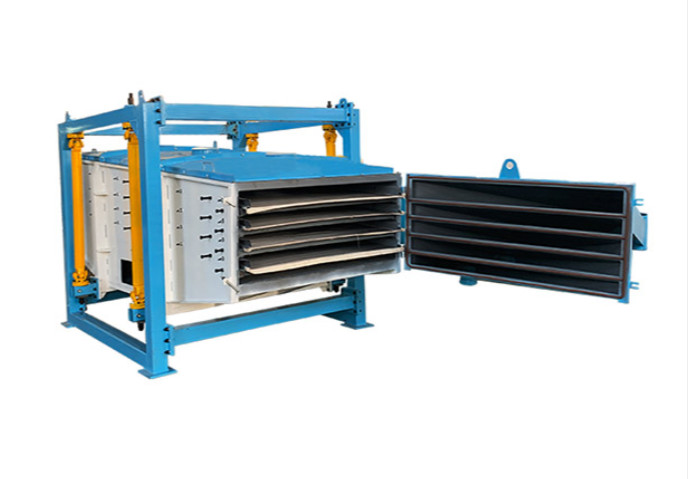

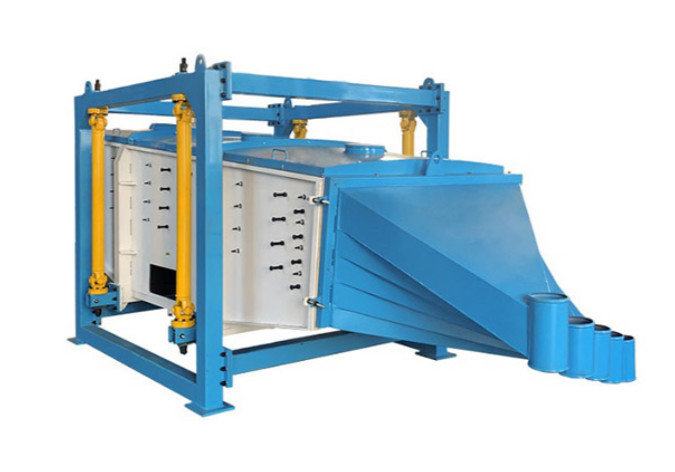

PRODUCT DETAILS

Shfy Linear Tumbler Screen Space Saving For Chemical 1

FAQ

Q: How long for the High output wollastonite powder Square Swing Screen Gyratory Sifter?
A: 7-20 working days.
Q: How long for warranty time?
A: 12 months from the shipping date.
Q: Can your engineer come to the construction site to guide the installation?
A: Yes, we can arrange our engineer to guide your installation.
Q: About quality
A: Welcome to our factory and check the quality of product.We will send you the video and pictures before shipment after you order.
