Flour / Starch 5kg 50kg Weighing Packaging Machine Premade Bag Palletizing Line
1 Set
MOQ
Negotiation
Price
Flour / Starch 5kg 50kg Weighing Packaging Machine Premade Bag Palletizing Line
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: CE, ISO9001:2015
Model Number: SanhePMT OAPL-400-25
High Light:

Flour 5kg Weighing Packaging Machine

,

50kg Bag Weighing Packaging Machine

,

Palletizing Industrial Bagging Machine

Payment & Shipping Terms
Packaging Details: wooden pallet
Delivery Time: 120-150 Days
Payment Terms: T/T,
Supply Ability: 3 Set Per Month
Specifications
Name: Premade Bag Weighing Packing Palletizing Line
Speed: 100 - 400 Bags / Hour
Target Weight Per Bag/bottle: 5 Kg To 50 Kg
Voltage: 380/220 V
Packing Accuracy: Better Than 0.1-0.2 % Of Full Scale
Packaging Type: Bags
Application: Flour / Starch
Port: Shanghai
Product Description

Automatic 5kg 50kg Premade Bag Weighing Packaging Palletizing Line For Flour / Starch



1,Production process:



Automatic giving empty bag - automatic weighing - automatic filling - automatic sewing machine - automatic conveying -automatic robot palletizing stacking;



2 . Specifications:



Feeding type

screw feeding

(can be determined

according to materials)

Target weight 5kg-50kg per bag
Packing accuracy (tolerance) Better than 0.1-0.2 % of full scale
Packing speed 100 - 400 bags / hour
power 380/220 V, 50-60Hz,3-phase, 5-wire
Bag size L:500mm-1000mm, W:350mm-605mm
Bag material

Kraft paper laminating bag;

Woven bag (coating);

Plastic bag (film thickness 0.2mm);

Woven bag (PE plastic bag laminating);

etc.



remarks :Woven bags and composite bags are required

(weight per square meter on one side ≥ 140g)

Bag shape Pillow shaped open mouth bag
Air supply Pressure 0.55~0.7 Mpa;
Air consumption: 0.3N m3 / min;
De-dusting negative pressure 10mba;
Air volume 1200m3 / hour



3, Equipment includes:

OAPL-25-400 automatic wheat seeds weighing packing machine (including operation platform);

Automatic empty bag loading machine;

Sewing machine;

Conveyor;

Bag shaking shaping machine;

Weight re-checking machine;

Knockout machine;

Buffer conveyor;

Bag grabbing conveyor;

Pallet magazinze;

Palletizing (including protective fence);

Safety guardrail and pull rope switch;

Control cabinet;



4. Equipment introduction:



The heavy bag weighing packing unit is mainly an automatic packing process of automatic bagging, automatic weighing materials, automatic filling materials and automatic sewing and output. Thus, the automatic operation from bulk materials to woven bag packaging is realized, which saves the investment of human, material and financial resources, reduces the production cost for customers and improves the production efficiency. The unit is widely used in the packging of powdery and granular materials such as feed, flour, chemical industry, grain, chemical fertilizer and building materials. It is the first choice for major companies to realize automatic packaging.



We have more than tens of seed company customers;

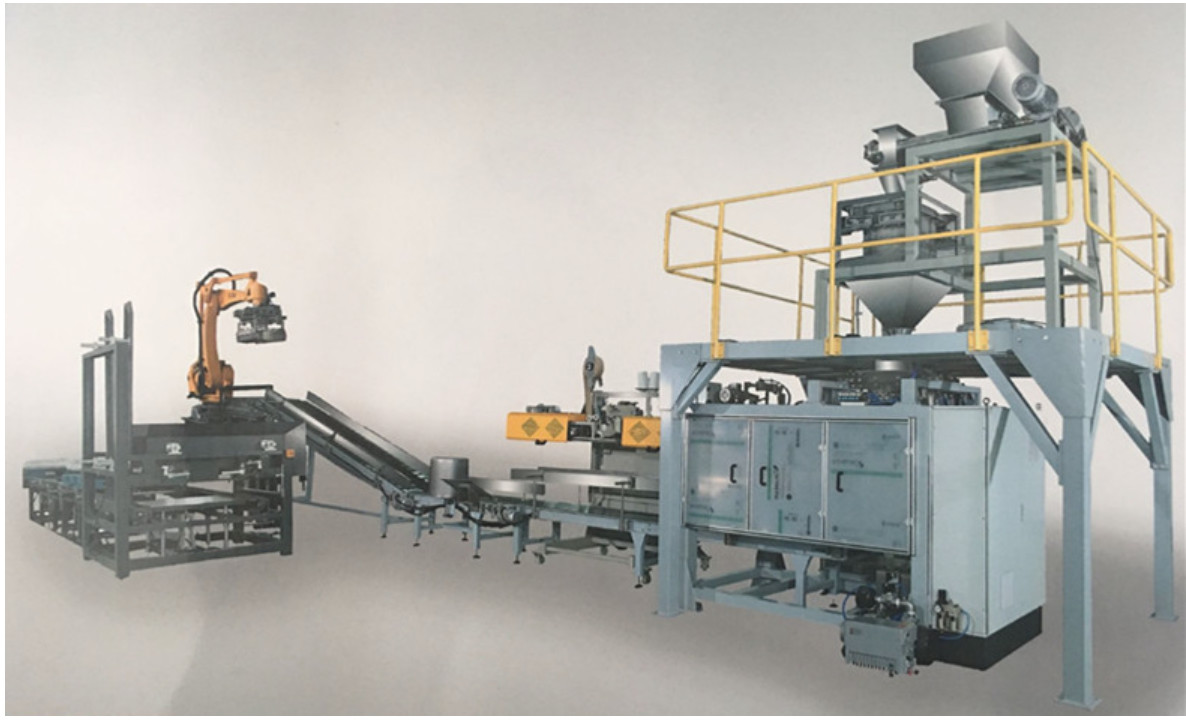

Flour / Starch 5kg 50kg Weighing Packaging Machine Premade Bag Palletizing Line 0



How Pouch Filling Machines Work




Film pulling system: composed of unwinding roller and tensioner. A roll of film (usually laminated PE, PET, aluminium foil) is placed on an unwind roll usually located at the rear of the machine. Using servo motors and tensioners, the film is unrolled and pulled into the system securely and precisely.



Bag making machine: After printing, the film enters the bag making machine. This process overlaps the edges of the film to form a bag. Vertical and bottom sealing is done by sealing jaws.



Filling and sealing machine: Filling is done by connecting the bagger to a multi-head scale or other filling machine such as an auger or volumetric filling machine. The two machines are electronically synchronized, so once the bag is ready, the product is automatically put in.

  
