Open Mouth Weighing Bagging Machine , Big Bag Packing Machine For Particles Powder
1 Set
MOQ
Negotiation
Price
Open Mouth Weighing Bagging Machine , Big Bag Packing Machine For Particles Powder
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: CE, ISO9001:2015
Model Number: DCS-25
High Light:

Bauxite Weighing Bagging Machine

,

480Bags/Hour Weighing Bagging Machine

,

0.8Mpa Industrial Bagging Machine

Payment & Shipping Terms
Packaging Details: wooden pallet
Delivery Time: 60-150 Days
Payment Terms: T/T,
Supply Ability: 3 Set Per Month
Specifications
Products Name: Particals / Powder Weighing Packing Machine
Bag Materials: PP Woven Bag , Paper Bag
Bag Dimension: According To Client
Packing Speed: 240 - 480 Bags /Hour
Target Range: 5Kg To 25kg Per Bag
Air Supply: 0.5 - 0.8Mpa
Product Description
5kg To 25kg Open Mouth Weighing Bagging Machine / Big Bag Packing Machine For Aluminium Metal Powder

Brief induction:
The automatic bagging machine can quickly and efficiently fill bags with flakes, and granular products up to 300 bags per hour. Each bag filling machine can operate independently or as a part of a complete packaging system with conveyors, palletizers, palletizing robots and stretch wrappers.


Parameters :



Hopper No. Single Double
Aplicable Sintered Tabular Alumina, Bauxite, Mullite, White Fused Alumina, Brown Fused Alumina, Silicon Carbide, Fluorspar etc
Weighing range 25-50 kg/bag
Packing speed 180-300 bags/hour 360-480 bags/hour
Weighing accuracy ±0.2%
Feeding mechanism Gravity feeder
Air source pressure 0.4-0.8 MPa
Voltage Single phase AC220V, three phase 380V, 50Hz, or customize
Power 2.5kw 5kw
Dimension 3000*1100*2450mm 3000*1100*3100mm
Working environment -20℃-50℃

Application:
This machine is applicable to weighing of Sintered Tabular Alumina, Bauxite, Mullite, White Fused Alumina, Brown Fused Alumina, Silicon Carbide, Fluorspar etc that are granular material, and quantitative packing of finished products or semi-finished products from the industry of cereals, chemical, Light Manufacturing & Foodstuffs, etc.

Equipment consists of:
1. Automatic filling system
2. Automatic weighing balance
3. Automatic belt conveyor
4. Automatic sewing machine
5. Electric control cabinet

Characteristics:
1. Automatic weighing, filling and packing for granular material;
2. Precise weighing and bagging;
3. All automatic control of fast and slow intake, weighing and letting down of the bag
4. All the working parameters are input on the mimic panel;
5. Auto minus of the weight and auto zero resetting:
6. The imported intellective weighing instrument can display the gross weight and net weight at the same time;
7. Automatic test and correct the weighing errors;
8. It can be connected to the computer for rational management of production.

Series Features:

1. New controller with high precision,working stable, can display the total weight,number of package, easy operation.

2. The adaptive software,having the function of automatic control parameters setting, automatic drop revising,over - weight warning and auto-diagnosis.

3. Wide packing range, high precision, it can match well with conveyor and sewing machine.

4. Products using imported sensor, pneumatic actuator, easy maintenance and non-pollution.

5. The main material body is carbon steel, with painted plastic. And material contact part is stainless iron , corrosion resistance, long service life.

6. Communication interface can be offered if need, realization of data communication with PC.

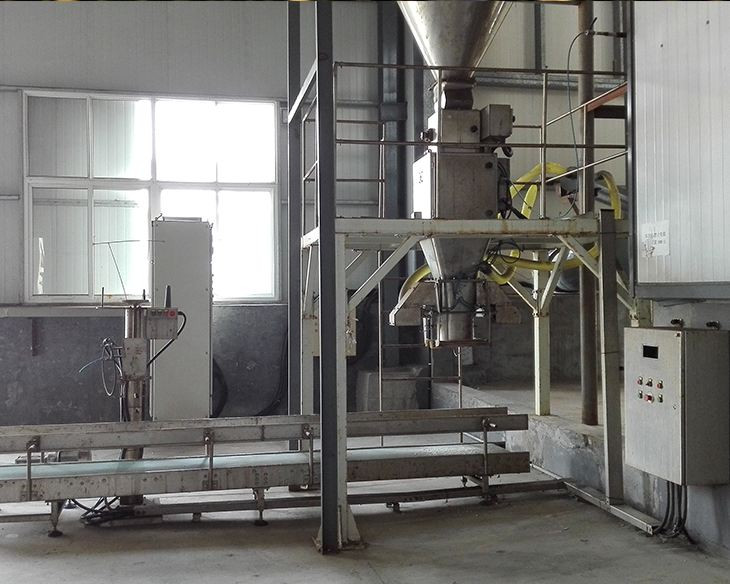

Open Mouth Weighing Bagging Machine , Big Bag Packing Machine For Particles Powder 0

Open Mouth Weighing Bagging Machine , Big Bag Packing Machine For Particles Powder 1

Open Mouth Weighing Bagging Machine , Big Bag Packing Machine For Particles Powder 2



Weighing bagging machine application :



This machine is applicable to weighing of Sintered Tabular Alumina, Bauxite, Mullite, White Fused Alumina, Brown Fused Alumina, Silicon Carbide, Fluorspar etc that are granular material, and quantitative packing of finished products or semi-finished products from the industry of cereals, chemical, Light Manufacturing & Foodstuffs, etc.



Weighing bagging machine Equipment consists of :



1. Automatic filling system
2. Automatic weighing balance
3. Automatic belt conveyor
4. Automatic sewing machine
5. Electric control cabinet



Characteristics :


1. Automatic weighing, filling and packing for granular material;
2. Precise weighing and bagging;
3. All automatic control of fast and slow intake, weighing and letting down of the bag
4. All the working parameters are input on the mimic panel;
5. Auto minus of the weight and auto zero resetting:
6. The imported intellective weighing instrument can display the gross weight and net weight at the same time;
7. Automatic test and correct the weighing errors;
8. It can be connected to the computer for rational management of production



Features :



1. New controller with high precision,working stable, can display the total weight,number of package, easy operation.

2. The adaptive software,having the function of automatic control parameters setting, automatic drop revising,over - weight warning and auto-diagnosis.

3. Wide packing range, high precision, it can match well with conveyor and sewing machine.

4. Weighing bagging machine using imported sensor, pneumatic actuator, easy maintenance and non-pollution.

5. The main material body is carbon steel, with painted plastic. And material contact part is stainless iron , corrosion resistance, long service life.

6. Communication interface can be offered if need, realization of data communication with PC.
