Automatic Big Bag Weighing Packing Machine ,25 Kg Bag Filling Packing Machine
1 Set
MOQ
Negotiation
Price
Automatic Big Bag Weighing Packing Machine ,25 Kg Bag Filling Packing Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: CE, ISO9001:2015
Model Number: OAPL-300-25
Payment & Shipping Terms
Packaging Details: wooden pallet
Delivery Time: 50-150 Days
Payment Terms: T/T,
Supply Ability: 3 Set Per Month
Specifications
Name: Weighing Packing Palletizing Line
Brand: Sanhe
Certification: ISO9001:2015. CE
Packing Speed: 300 Bags Per Hour
Target Weight Per Bag/bottle: 5 Kg To 50 Kg
Port: Shanghai
Product Description

Automatic Big Bag Weighing Packing Machine , 25 Kg Bag Filling Packing Machine



1. General introduction



This unit is a dedicated equipment for automation production mainly to realize automatic packaging (automatic bag pickup, bag feed, bag delivery, bag opening, filling and bag sealing) and output of finished product. This equipment totally adopts PLC man-machine interface display screen control, which significantly facilitates operation, so, it is the requisite equipment for automated enterprise production.



2. Characteristics



2.1 Applicable to the packaging bags of the same specification, if the packaging bag needs to be changed, please make adjustment as per the operation requirements;

2.2 This machine adopts rational design, bag suction, bag opening, filling and sealing are completed automatically;

2.3 This machine adopt PLC + man-machine interface display screen control with high performance, high speed and high efficiency;

2.4 This machine is structurally compact and has nice appearance;

1.2.5 This system is suitable for various packaging materials such as paper bag, woven bag (without coated film), plastic bag, etc., and is widely applied in chemical, forage and grain sectors, etc.



3. service environment



It shall be avoided to use the machine in the working environment where there is corrosive, combustible gas or heavy powdery dust, it shall be avoided to use the machine in the place with temperature over 40, and shall be avoided to use it in the place with too high relative ambient humidity (>85%HR).



4. Precautions for use



Notice: use specified supply voltage, this machine adopts single-phase 3-wire (AC380V, 50Hz), it shall be avoided to roll press the power line and the power line shall be rolled with hands when it is not used;

Notice: please keep the equipment clean inside and outside and avoid moisture;

Notice: please do not change any part on the machine;

Notice: before formal startup, be sure to confirm that each switch parameter operates normally, otherwise, the equipment may be damaged;

Notice: before formal startup, if the specification needs to be changed, please perform operation in strict accordance with the specification change steps, otherwise, the equipment may be damaged;

Notice: please do not place moist and dirty articles on the equipment deck.

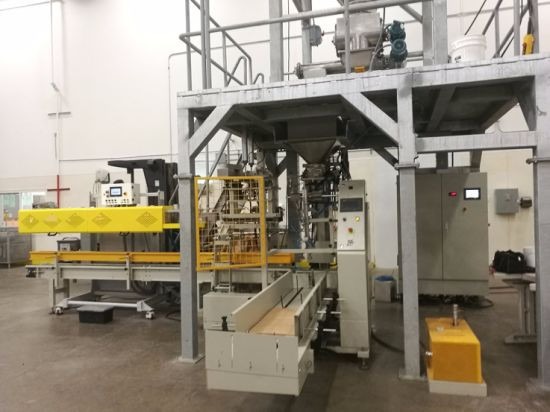

5. Description of functional modules



Functional modules include (Fig. 1):

1. storage silo: used for short-time storage of material in order to ensure interrupted supply of material to the packaging machine.

2. 25kg double-head weighing machine: quantitative metering and supply.

3. Working platform: used for equipment inspection and maintenance.

4. Card inserting machine: card feed.

5. Fast bag feed automatic packaging machine: completes automatic packaging process, including: automatic bag feed, bag clamp and opening, filling, metering, bag mouth unscrambling, bag holding and conveying;

6. seam sealing machine: stitching, rubber covering and adhesion of packaging bag mouth.

7. Finished product conveyor: automatically outputs already packaged finished bags.



6. Technical Parameters:



Model OAPL
Bag size(mm) L: 800~1000 W: 450~600 mm
Bag material Kraft bag, Woven bag, PE laminated bag
Sealing type Straight sealing
Package range(kg) 10~25
Accuracy ±0.2% to ± 0.3%
Speed(bags/hr) 120~300
Power rate(kw) around 7.5
Power supply AC 380V/50HZ , or depend on your country need
Compressed air(Mpa) 0.6~0.8
Noise around 77dB
Environment Temp. ~20 to +40
