Automatic Granule Weighing Packing Machine For 25kg Solid Urea / Polymer Bound Rubber Chemicals
1 Set
MOQ
Negotiation
Price
Automatic Granule Weighing Packing Machine For 25kg Solid Urea / Polymer Bound Rubber Chemicals
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: CE, ISO9001:2015
Model Number: OAPL-300-25
Payment & Shipping Terms
Packaging Details: wooden pallet
Delivery Time: 50-150 Days
Payment Terms: T/T,
Supply Ability: 3 Set Per Month
Specifications
Name: Weighing Packing Palletizing Line
Brand: Sanhe
Certification: ISO9001:2015. CE
Packing Speed: 300 Bags Per Hour
Target Weight Per Bag/bottle: 5 Kg To 50 Kg
Port: Shanghai
Product Description

Automatic Granule Weighing Packing Machine For 25kg Solid Urea / Polymer Bound Rubber Chemicals



1. General



This unit is a dedicated equipment for automation production mainly to realize automatic packaging (automatic bag pickup, bag feed, bag delivery, bag opening, filling and bag sealing) and output of finished product. This equipment totally adopts PLC man-machine interface display screen control, which significantly facilitates operation, so it is the requisite equipment for automated enterprise production.



2. Description of functional modules



1) storage silo: used for short-time storage of material in order to ensure interrupted supply of material to the packaging machine.

2) 25-50KG double-head weighing machine: quantitative metering and supply.

3) Working platform: used for equipment inspection and maintenance.

4) card inserting machine: card feed.

5) Fast bag feed automatic packaging machine: completes automatic packaging process, including: automatic bag feed, bag clamp and opening, filling, metering, bag mouth unscrambling, bag holding and conveying;

6) seam sealing machine: stitching, rubber covering and adhesion of packaging bag mouth.

7) Finished product conveyor: automatically outputs already packaged finished bags.



3. Configuration Explanation:



1) The machine is easy operated and stable because of adopting Siemens PLC and 10 inch color touch screen in control part.

2) Pneumatic part adopts SMC/Airtac solenoid, oil- water separator, and cylinder.

3) Vacuum system adopts SMC/Airtac solenoid, filter, and digital vacuum pressure switch.

4) The magnetic switch and photoelectrical switch are provided in every movement mechanism, which is safe and reliable.



4. Mechanism Component:



1) Automatic picking-up bag system: Automatically pick up the prepared bag.

2) Opening bag, clamping, holding bag mechanism: Automatically open, hold and fix bag.

3) Hugging bag and conveying mechanism: Hugging bag and conveying bag.

4) Sewing bag: Automatic conveying bag and automatic sewing (sewing bag)

5) Electrical control part: Completely control the whole packaging unit.

6) Automatic weighing machine: Linear weighing machine

7) Conveyor: Convey material automatically



5. Technical Parameters:



Product material Solid Urea / Polymer Bound Rubber Chemicals
Function weighing, packaging, palletizing
Applicable scope 25kg-50kg bags packaging of granular materials
Bags materials Woven bag, Kraft bag, Laminated film plastic bag
Bag size L(800~1000)*W(450~550)mm
Packaging weight 25~50kg/bag
Measuring accuracy +-0.1%~0.2%
Packing speed 6~12packs/min( depends on the packaging material,bag size etc)
Sealing mode folding/seaming or heat sealing
Product Keywords Solid Urea Particle Automatic Granule Packing Machine For 25 Kg Bags

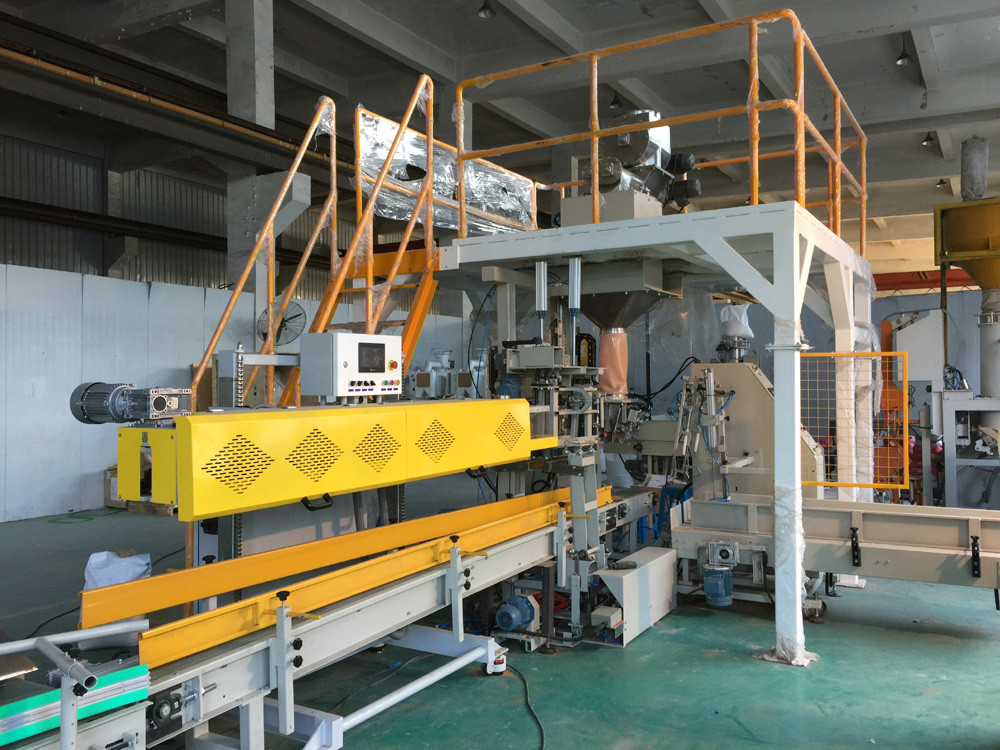

Automatic Granule Weighing Packing Machine For 25kg Solid Urea / Polymer Bound Rubber Chemicals 0

Automatic Granule Weighing Packing Machine For 25kg Solid Urea / Polymer Bound Rubber Chemicals 1

Automatic Granule Weighing Packing Machine For 25kg Solid Urea / Polymer Bound Rubber Chemicals 2
