Name: 25 Kg Automatic Bagging and Palletizing System Automatic weighing and boxing line
Brand: Changshu Sanhe Precision Machinery & Technology Co.,Ltd.
SKU: DCS-25
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: DCS-25 25 Kg Automatic Bagging And Palletizing System

Used For: Particles Weighing Filling

Power Supply: Electric

Accuracy: Generally (+/- )0.2%FS,2δ

Origin: Suzhou

Weighing Range(kg): 25 Kg

Highlight:

automatic bag filling machine

automatic bagging equipment

Basic Infomation

Place of Origin: Suzhou

Brand Name: Sanhe

Certification: ISO9001:2015, CE

Model Number: DCS-25

Payment & Shipping Terms

Packaging Details: Wood Pallet

Delivery Time: 90 days

Payment Terms: L/C, T/T

Supply Ability: 90 Sets Per Month

Gallery

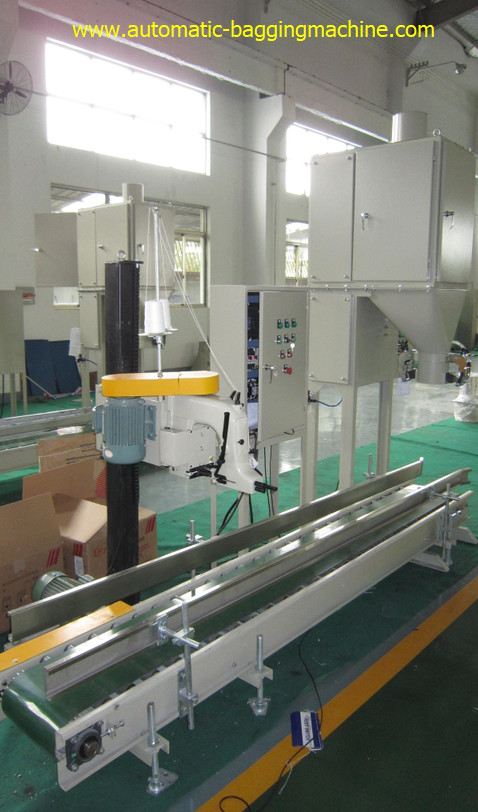

25 Kg Automatic Bagging and Palletizing System Automatic weighing and boxing line

Product Description

25 Kg Automatic Bagging and Palletizing System Automatic weighing and boxing line

Advantage of 25 kg semi-automatic weighing packing bagging machine :

1). Just need connect the to the customer's hopper to our our packing machine buffer hopper, Or use the elevator to lift the materials from the ground to our packing machine buffer hopper .

This not only saves labor costs for enterprises, but also improves work productivity.

2). Different products have different feeding methods:

There are gravity arc door feeding, screw feeding , air flow feeding,

3). Electronic packaging scale is mainly applicable to automatic quantitative packaging of various granular materials, such as metering packaging of various granular materials such as soybean meal, feed, seed, building materials, compound fertilizer, chemical raw materials, etc.

4). The electronic packaging scale is easy to clean and maintain, with few transmission parts , low failure rate.

5). Fast packing speed, high weight accuracy, low dusting.

6). The contact part of the electronic packaging scale is made of stainless steel, which has strong corrosion resistance, high hygiene standards and long service life of the equipment.

7). High precision weighing sensor: grade 0.2 weighing sensor is selected. Intelligent weighing display controller: high resolution, high-speed A / D conversion, weighing out of tolerance, zero out of tolerance alarm, various standard data communication interfaces, etc.

8). Composition of big bag weighing packing machine:

A. Buffer hopper ( in order to provide a Continuous and stable material flow) ;

B. Weighing part: through the weighing load cell ;

C. Feeding part ( arc door feeding / screw feeding / air flow feeding / Impeller feeding , available )

D. Unloading part;

9). Load cell and digital weighing controller. Automatically start, Automatically tare, Automatically free fall compensation.

25 Kg Automatic Bagging and Palletizing System Automatic weighing and boxing line 0

25 Kg Automatic Bagging and Palletizing System Automatic weighing and boxing line 1

operation flow chart.

1. load on bag

2. peeling weight

3. fast feeding

4. slow feeding

5. finish filling

6. seal / sew bag mouth

the following optional operation :

1. metal detection ,

2. weight checker ,

3. remove the bag with weight over error,

4. inkjet printer ,

5. automatic palletizer,

6. auto pallet wrap machine / stretch hood machine

The parameter and function table :

	DCS-25
Scope of application
Suitable materials	Granular material or powder material with fine flowability
Suitable packing container	Open mouth bag, box, barrel
Feeding type	Gravity
Alternative feeding type	Vibrator
Technical parameters
Weighing range(Kg)	25 kg
Packing speed(bag/H)	160-180 bag / H ( Gross weight ) 200-300 bags / H ( Net weight )
Packing Accuracy	Generally ( +/- ) 0.2% FS, 2δ ( Note : special materials shall depend on the industrial standard )

Product usuage :

--This machine is suitable for many kinds of powder such as:

--Milk powder ,flour ,rice powder ,protein powder ,Seasoning powder, chemical powder, medicine powder,coffee powder ,soy flour Etc.

--Milk powder filling machine ,flour powder filling machine ,coffee powder filling machine

95% of China Silica factory use our packing machine.we sales to India, moroco, france, USA, Thailand, and other countries.

Our competitive products:

1. gravity type packing scale

2. screw type packing scale

3. airflow type packing scale

4. automatic carton box (bags in carton box) packing line

5. automatic valve bag packing line

6. automatic air-removing packing line

	DCS-25GO7N) net weight type for granules	DCS-25(PO2G) Gross weight type for granules	DCS-25(PO2N) Net weight type for powder	DCS-25(PO4G) Vertical screw type
Scope of application
Suitable materials	Granular material or powder material with fine flowability	powder material or Fine powder	powder material	Easy to bridging or raised dust of ultrafine powder
Suitable packing container	Open mouth bag, box, barrel	Open mouth bag, box, barrel	Open mouth bag, box, barrel	Open mouth bag, box, barrel
Feeding type	Gravity	horizontal screw	horizontal screw	Vertical screw
Alternative feeding type	Vibrator	Vibrator, belt	Vibrator, belt	×
Technical parameters
Weighing range	1-100	10-50	10-50	1-50
Packing speed(bag/H)	300-800	100-200	100-500	100-180
Packing Accuracy	Generally (+/- )0.2% ( Note: special materials shall depend on the industrial standard )
Control function
Automatic tare	○	○	○	○
Automatic quick and slow feeding	○	○	○	○
Automatic free fall compensation	○	○	○	○
Automatic minus deviation	▲	▲	▲	▲
Automatic over weight alarms	○	○	○	○
diagnosis failure	○	○	○	○
Manual/Automatic mode conversation	○	○	○	○
Communication port	▲	▲	▲	▲
Regulatory function
Manual adjusting the height of bag	○	○	○	○
Important auxiliary function
Arch break function of hopper	×	○	○	○
Vibration at the bottom of the bag	▲	▲	▲	▲
Powder protection
Inflatable seal	▲	▲	▲	▲
Negative pressure dusting(not contain duster)	▲	○	○	○
Valve for leak-proof	×	▲	▲	▲
Safety protection
Electrostatic grounding	▲	▲	▲	▲
ionic wind remove static	▲	▲	▲	▲
when lose power	○	○	○	○
Emergency stop	○	○	○	○
Ex-proof	▲	▲	▲	▲
Original mode	DCS-25	DCS-25FW	DCS-25F	DCS-25FL
Mark: “○”is standard function；“▲”is choose function ；“×”is not has function

Main specialty

Scope of application: Granular material or powder material of Packing bags(boxes and pails)
Can be made into twin-type pakcer(except DCS-25(GO7N)和DCS-25(PO4G))
Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.
