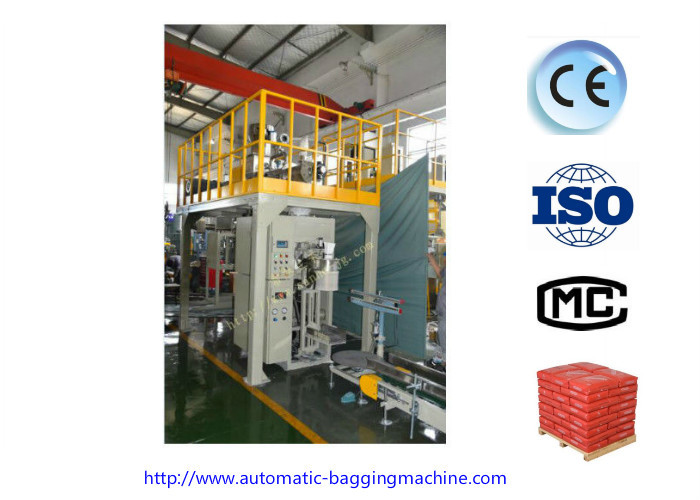

DCS-25 Semi Automatic FW 25Kg Packing Machine Packing Scale
A. What is 25 kg electronic packing scale:
Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.
B. Working principle of 25 kg electronic packaging scale:
When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;
At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.
The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.
C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.
D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine
The parameter and function table :
|DCS-25 ( PO2N ) Open Mouth Bag Packer Net Weight Type for Powder|
|Scope of application|
|Suitable materials||Granular material or powder material with fine flowability|
|Suitable packing container||Open mouth bag, box, barrel|
|Feeding type||Horizontal screw|
|Alternative feeding type||Vibrator, belt|
|Weighing range(Kg)||10 -50|
|Packing Accuracy||Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)|
Main specialty .
Scope of application: Granular material or powder material of Packing bags(boxes and pails)
Can be made into twin-type pakcer(except DCS-25(GO7N)and DCS-25(PO4G))
Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject
conveyor, pallet magazine, stacker.
Please Send us The Details We Required :
1. Name of Material to Be Filled in Bag?
2. Wight Capacity of Single Bag ?
3. How Much Bag Fill Per Hour?
4. Your Materials Characte?
Product Characteristics :
Easy to operate and use
Bag-clamp equipment is advanced, material can be fully filled
Fill material system has material-stop equipment, accuracy high
Control, work parts all use imported parts, stable and reliable with sewing machine
Heat-sealing machine optional
Our Service :
1. We can provide "one-stop purchasing" or "package program" system solutions and owns professional manufacturing equipment as well as a full range of technical support and after-sale service.
2. OEM, Customized can be all accepted.
3. Contact us any time when you feel free.
