DCS-25 (GO7N)-TW-AL-H Open Mouth Packing Machine
1 Set
DCS-25 (GO7N)-TW-AL-H  Open Mouth Packing Machine
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: ISO9001:2015, CE
Model Number: DCS-25
High Light:

open mouth bagging equipment


open mouth bag filling machines

Payment & Shipping Terms
Packaging Details: Wood Pallet , the size of pallet to be confirmed
Delivery Time: 90 Days
Payment Terms: T/T
Supply Ability: 90 Sets Per Month
Product Name: Semi-Automatic Weighing Bagging Machine
Weighing Range: 25 Kg
Packing Speed: 600-1200 Bags/Hour
Accuracy: Generally (+/- )0.2%
Powder: 5 KW
Operator: 1 Stuff
Product Description

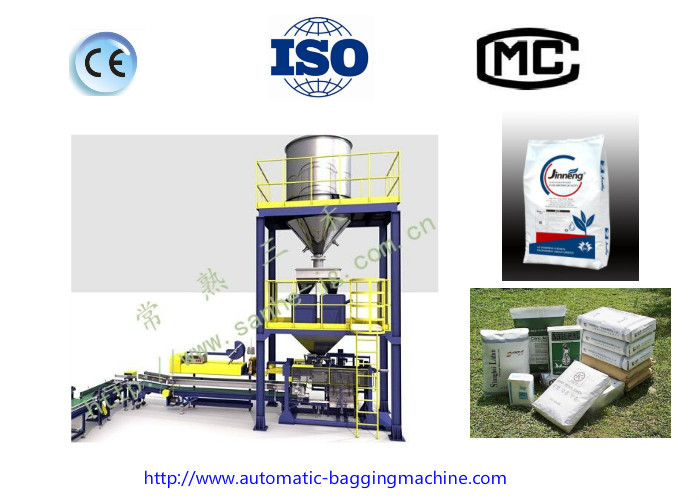

DCS-25 (GO7N)-TW-AL-H Open Mouth Packing Machine

feeding type : by gravity


A. What is 25 kg electronic packing scale:

Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.


B. Working principle of 25 kg electronic packaging scale:

When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;


At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.


The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.



C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.


D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine


 Open Mouth Bag Automatic Packing & Palletizing for granule and powder material
The parameter and function table
DCS-25(GO7N)-TW-AL-H(multi-scale type for granule material)
 DCS-25(PO2N)-TW-AL-H(multi-scale type for powder material)
 Scope of application
 Suitable materials
 Granular material
 powder material with good flowability
 Suitable packing bag
 Open mouth bag
 Open mouth bag
 Feeding type
 Alternative feeding type
 Technical parameters
 Automatic supply bag machine
 Number of packing scale
 Number of discharging material
 Weighing range(Kg)
 Packing speed(bag/H)
 Packing Accuracy
 Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)


Product Characteristics

Easy to operate and use

Bag-clamp equipment is advanced, material can be fully filled

Fill material system has material-stop equipment, accuracy high

Control, work parts all use imported parts, stable and reliable with sewing machine

Heat-sealing machine optional

Our Service

1.We can provide "one-stop purchasing" or "package program" system solutions and owns professional manufacturing equipment as well as a full range of technical support and

after-sale service.

2. OEM, Customized can be all accepted.

3. Contact us any time when you feel free.


Q: Can your machine be customized ?

A: Yes, we are a professional manufacturer specilized in palletizing robot, packaging machine, conveyor etc. for more than 20 years and we have a strong design & technical team.

We can design and manufacture as per your requirements.

Q: How to get an accurate quotation ?

A: Please provide us the detail of the workpiece such as drawing and dimensions.

Q: What’s the shipping cost from China to your country ?

A: We can send machine to your port by sea or other term you need. Please kindly tell us your nearest port or address. We have reliable shipping agent to ensure the safe,

convenient and timely delivery.

Q: Payment terms, MOQ, warranty, Trade Terms

Minimum order quantity: 1 set, FOB Shanghai

Delivery time: Fast delivery after receive the order deposit.

Warranty: 12 months following delivery. We offer online service 24 hours all day long

You can contact us any time, if urgently, please call us.
