25 Kg Open Mouth Bag Weighing Bagging Packing Machine Ultrafine Powder Packer
advantage of semi-automatic weighing packing machine:
1.Just need connect the to the customer's hopper to our our packing machine buffer hopper, Or use the elevator to lift the materials from the ground to our packing machine buffer hopper .
This not only saves labor costs for enterprises, but also improves work productivity.
2. Different products have different feeding methods:
There are gravity arc door feeding, screw feeding , air flow feeding,
3. Electronic packaging scale is mainly applicable to automatic quantitative packaging of various granular materials, such as metering packaging of various granular materials such as soybean meal, feed, seed, building materials, compound fertilizer, chemical raw materials, etc.
4. The electronic packaging scale is easy to clean and maintain, with few transmission parts , low failure rate.
5. fast packing speed, high weight accuracy, low dusting.
6. The contact part of the electronic packaging scale is made of stainless steel, which has strong corrosion resistance, high hygiene standards and long service life of the equipment.
7. High precision weighing sensor: grade 0.2 weighing sensor is selected. Intelligent weighing display controller: high resolution, high-speed A / D conversion, weighing out of tolerance, zero out of tolerance alarm, various standard data communication interfaces, etc.
8. Composition of big bag weighing packing machine:
A. Buffer hopper ( in order to provide a Continuous and stable material flow) ;
B. Weighing part: through the weighing load cell ;
C. Feeding part ( arc door feeding / screw feeding / air flow feeding / Impeller feeding , available )
D. Unloading part;
9. Load cell and digital weighing controller. Automatically start, Automatically tare, Automatically free fall compensation.
The parameter and function table :

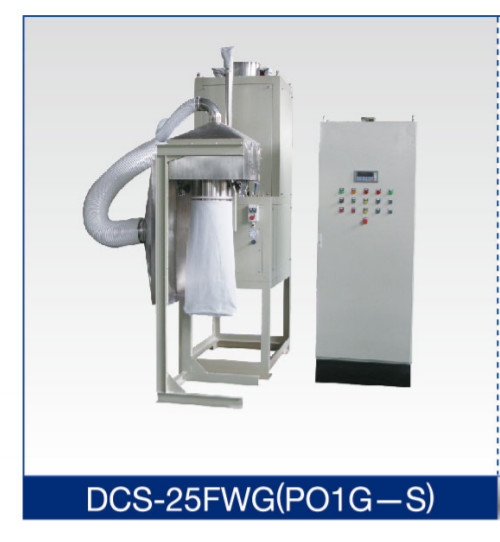

|| DCS-25FWG Ultrafine Powder Weighing Packer
|Scope of application
|Suitable packing container
||Open mouth bag, box, barrel
|| Above and below two screws / air flow type
|Alternative feeding type
||30-100 bags per hour
||Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)
operation flow chart.
1. load on bag
2. peeling weight
3. fast feeding
4. slow feeding
5. finish filling
6. seal / sew bag mouth
the following optional operation :
1. metal detection ,
2. weight checker ,
3. remove the bag with weight over error,
4. inkjet printer ,
5. automatic palletizer,
6. auto pallet wrap machine / stretch hood machine
When start packing machine, packing machine tare the weighing hopper automatically.
2. Fast feed
Packing machine start arc-door feeding device to feeding, When the appropriate weight(fast feed weight setting by operator on the weighing controller)is achieved, fast feeding is over.
3. Slow feed
Packing machine begin to slow feed Automatically, when the appropriate weight(slow feed weight setting by operator on the weighing controller)is achieved, slow feed is over. The whole weighing progress is over.
Utilities ( provided by buyer )
AC380V±10％；50Hz±2%(three phase and five wires)；
2. Compressed Air:
Pressure: 0.55~0.7 Mpa；
Consumption: 0.3N m3/min；
3. Temperature: -10- +40(℃ )
4. Relative humidity: ≤90% (no coagulation water )
Negative pressure:6-8 pa
Blowing rate: 1800m³/Hour
Advantage : Fast packing speed , high precision, less dust
Our hot sale products :
1. 25 kg automatic ( open mouth bag ) packing & palletizing line,
2. 25 kg automatic ( valve type bag ) packing & palletizing line,
3. ton bag packing machine.
4. liquid filling machine (10L-50L;/ 50L-250L; / 1500L)
95% of china white carbon black factory use our packing machine
FAQ of our Weighing Bagging Machine :
Please Send us The Details We Required :
1. Name of Material to Be Filled in Bag?
2. Weight Capacity of Single Bag ?
3. How Much Bag Fill Per Hour?
4. Your Materials Characte?
