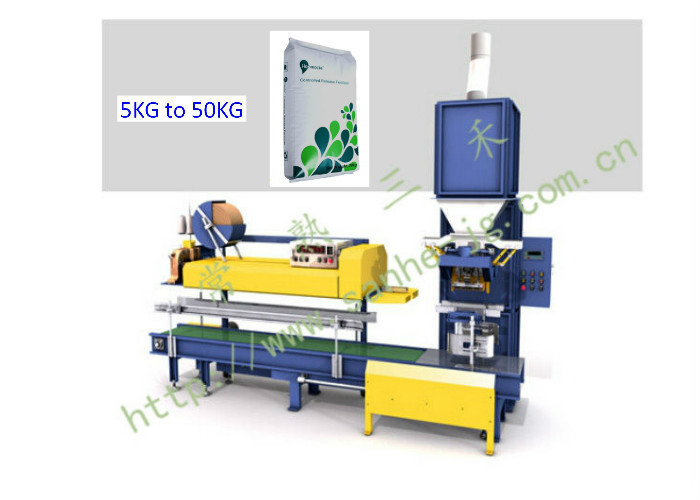

A. What is the 25 kg packing machine ?
It is used to transport materials (normally powder or granule ) from the silo to the packaging container, and it also has the function of weighing,
B. Discription of 25 Kg packing machine ?
Electronic quantitative packaging scale is a combination of electronic scale and automatic control. It weighs when feeding until it is close to the preset packaging value. The computer quantitative packing scale is composed of several independent weighing units with the structure of feeding and discharging. The computer quantitative packing scale is suitable for the quantitative packing of 25kg-50kg, and the electronic quantitative packing scale is widely used.
C. Application of 25Kg packing machine:
Powder quantitative packaging machine is suitable for the quantitative packaging of powder, powder and powder materials in chemical, food, agricultural and sideline products industries, such as milk powder, starch, pesticide, veterinary medicine, premix, additive, condiment, feed, enzyme preparation, etc.; powder quantitative packaging machine is a combination of machine and instrument, controlled by single chip microcomputer, with automatic quantitative, automatic filling and automatic adjustment of measurement error Etc.
D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine
|
|
DCS-25 ( GO7N ) Net weight type for granules
|
|
Scope of application
|
|
|
Suitable materials
|
Granular material or powder material with fine flowability
|
|
Suitable packing container
|
Open mouth bag, box, barrel
|
|
Feeding type
|
Gravity
|
|
Alternative feeding type
|
Vibrator
|
|
Technical parameters
|
|
|
Weighing range(Kg)
|
25 Kg
|
|
Packing speed(bag/H)
|
300
|
|
Packing Accuracy
|
Generally ( +/- ) 0.2% FS, 2δ (Note: special materials shall depend on the industrial standard)
|
Our Service :
1.We can provide "one-stop purchasing" or "package program" system solutions and owns professional manufacturing equipment as well as a full range of technical support and after-sale service.
2. OEM, Customized can be all accepted.
3. Contact us any time when you feel free.
FAQ :
Q: Can your machine be customized ?
A: Yes, we are a professional manufacturer specilized in palletizing robot, packaging machine, conveyor etc. for more than 20 years and we have a strong design & technical team. We can design and manufacture as per your requirements.
Q: How to get an accurate quotation ?
A: Please provide us the detail of the workpiece such as drawing and dimensions.
Q: What’s the shipping cost from China to your country ?
A: We can send machine to your port by sea or other term you need. Please kindly tell us your nearest port or address. We have reliable shipping agent to ensure the safe, convenient and timely delivery.
Q: Payment terms, MOQ, warranty, Trade Terms
Minimum order quantity: 1 set, FOB Shanghai
Warranty: 12 months following delivery. We offer online service 24 hours all day long
You can contact us any time, if urgently, please call us.
FAQ :
Please Send us The Details We Required :
1. Name of Material to Be Filled in Bag?
2. Weight Capacity of Single Bag ?
3. How Much Bag Fill Per Hour?
4. Your Materials Characte?
Our core products are:
Automatic open mouth bag packing and palletizing line
Automatic valve bag packing and palletizing line
Automatic packing and palletizing line
Open mouth bag packing machine for granular
Open mouth bag packing machine for powder
Valve bag packing machine for granular
Valve bag packing machine for powder
Big bag packing machine
Big bag unloading station
Liquid filling machine
Various conveyors
|
DCS-25GO7N) net weight type for granules |
DCS-25(PO2G) Gross weight type for granules |
DCS-25(PO2N) Net weight type for powder |
DCS-25(PO4G) Vertical screw type |
|
|
Scope of application |
||||
|
Suitable materials |
Granular material or powder material with fine flowability |
powder material or Fine powder |
powder material |
|
|
Suitable packing container |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
|
Feeding type |
Gravity |
horizontal screw |
horizontal screw |
Vertical screw |
|
Alternative feeding type |
Vibrator |
Vibrator, belt |
Vibrator, belt |
× |
|
Technical parameters |
||||
|
Weighing range |
1-100 | 10-50 | 10-50 | 1-50 |
|
Packing speed(bag/H) |
300-800 | 100-200 | 100-500 | 100-180 |
|
Packing Accuracy |
Generally (+/- )0.2% ( Note: special materials shall depend on the industrial standard ) |
|||
|
Control function |
||||
|
Automatic tare |
○ | ○ | ○ | ○ |
|
Automatic quick and slow feeding |
○ | ○ | ○ | ○ |
|
Automatic free fall compensation |
○ | ○ | ○ | ○ |
|
Automatic minus deviation |
▲ | ▲ | ▲ | ▲ |
| Automatic over weight alarms | ○ | ○ | ○ | ○ |
| diagnosis failure | ○ | ○ | ○ | ○ |
|
Manual/Automatic mode conversation |
○ | ○ | ○ | ○ |
|
Communication port |
▲ | ▲ | ▲ | ▲ |
|
|
||||
| Manual adjusting the height of bag | ○ | ○ | ○ | ○ |
| Important auxiliary function | ||||
| Arch break function of hopper | × | ○ | ○ | ○ |
| Vibration at the bottom of the bag | ▲ | ▲ | ▲ | ▲ |
| Powder protection | ||||
| Inflatable seal | ▲ | ▲ | ▲ | ▲ |
| Negative pressure dusting(not contain duster) | ▲ | ○ | ○ | ○ |
| Valve for leak-proof | × | ▲ | ▲ | ▲ |
|
Safety protection |
||||
| Electrostatic grounding | ▲ | ▲ | ▲ | ▲ |
| ionic wind remove static | ▲ | ▲ | ▲ | ▲ |
| when lose power | ○ | ○ | ○ | ○ |
| Emergency stop | ○ | ○ | ○ | ○ |
| Ex-proof | ▲ | ▲ | ▲ | ▲ |
| Original mode | DCS-25 | DCS-25FW | DCS-25F | DCS-25FL |
| Mark: “○”is standard function；“▲”is choose function ；“×”is not has function | ||||
Main specialty
Main sub-suppliers:
| Name OF Outsourcing | Sub-suppliers |
| Weighing Controller | Uniplus F701 / Zhi Mei or Jie Man |
| Load Cell | Mettler Toledo / Zhong Dian Hang Ce |
| PLC | Mitsubishi |
| Touch panel ( option ) | Mitsubishi |
| Fold edge sewing machine | De chao |
| Pneumatic Equipment | FESTO or SMC or airtac |
| Solenoid valve | FESTO or SMC or airtac |
| Photoelectric switch | Autonics |
| Metal detector | METRON German |
| Robot | FUJI EC-102 |
| Motor | Wan Nan |
| Sewing machine | De Chao |
| Electric cabinet | Tong Ke |
| General Electric Component | SCHNEIDER |
Utilities ( provided by buyer )
1. Power:
AC380V±10％；50Hz±2%(three phase and five wires)；
2. Compressed Air:
Pressure: 0.55~0.7 Mpa；
Consumption: 0.3N m3/min；
3. Temperature: -10- +50(℃)
4. Relative humidity: ≤90% (no coagulation water)
5. De-dusting
Negative pressure:6-8 pa
Blowing rate: 1800m³/H
Advantage : Fast packing speed , high precision, less dust
