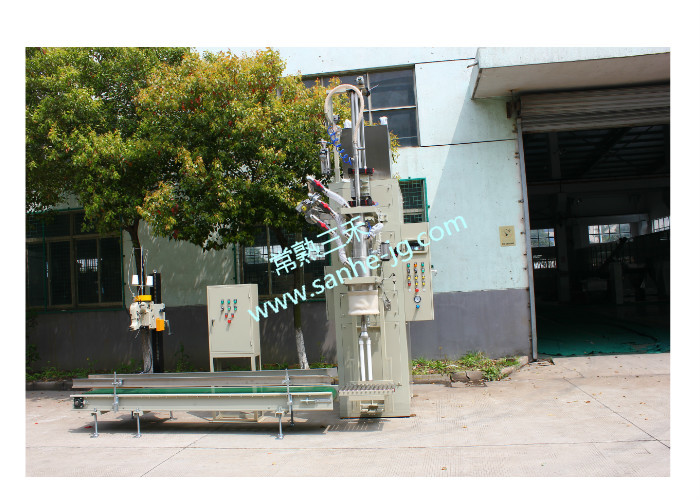

DCS-25FWG Open Mouth Bagging Machine for Chemical, Medicine , Bulding Materials, Food
A. What is 25 kg electronic packing scale:
Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.
B. Working principle of 25 kg electronic packaging scale:
When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;
At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.
The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.
C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.
D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine
Main specialty :
Suit for material contain many air which use open mouth bag to packing.
Can exhausting the air in material, improve the bulk density of material in bag. It not wasting material.
Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.
The parameter and function :
|DCS-25FWG(PO1G-S) Open Mouth Bagging Machine|
|Scope of application|
|Suitable materials||Powder and thin granule of good Air affinity|
|Suitable packing container||Open mouth bag|
|Feeding type||Air flow type|
|Alternative feeding type||Screw type|
|Packing Accuracy||Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)|
Our Services :
1.one year guarantee for whole machine except for wear parts;
2.24 hours technical support by email;
4.user manual available;
5.reminding for the service life of the wearing parts;
6.installation guide for clients from both China and abroad;
7.maintance and replacement service;
8.whole process trainling and guidance from our technicians.High quality of after-sales service symbolizes our brand and ability. We pursue not only good quality products, but
also best after sales service. Your satisfaction is our final purpose.
Please Send us The Details We Required :
1. Name of Material to Be Filled in Bag?
2. Weight Capacity of Single Bag ?
3. How Many Bags Fill Per Hour?
4. Your Materials Characte?
Our core products are:
Automatic open mouth bag packing and palletizing line
Automatic valve bag packing and palletizing line
Automatic packing and palletizing line
Open mouth bag packing machine for granular
Open mouth bag packing machine for powder
Valve bag packing machine for granular
Valve bag packing machine for powder
Big bag packing machine
Big bag unloading station
Liquid filling machine
