|Place of Origin:||Suzhou|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Wood Pallet|
|Delivery Time:||90 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||90 Sets Per Month|
|Name:||Superfine Powder Weighing Packing Machine||Speed:||100-500 Bags Per Hour|
|Power Supply:||Electric||Accuracy:||Generally (+/- )0.2%|
|Origin:||Suzhou||Weighing Range(kg):||25 Kg|
open mouth bagging equipment,
open mouth bagger

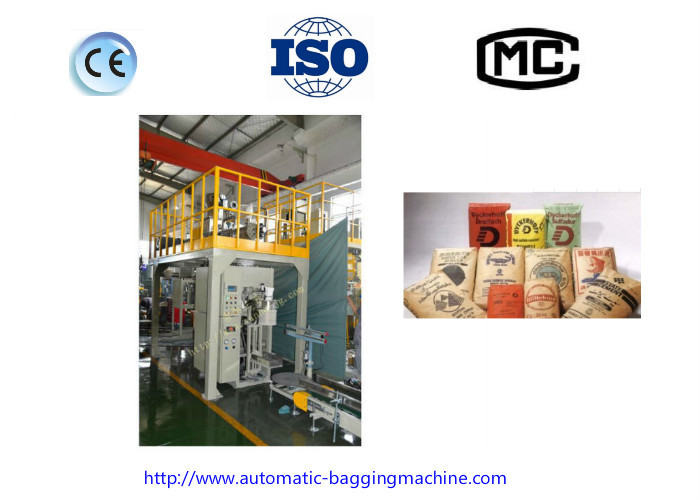

DCS-25 25 Kg Superfine Powder Weighing Packing Machine
A. What is 25 kg electronic packing scale:
Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.
B. Working principle of 25 kg electronic packaging scale:
When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;
At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.
The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.
C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.
D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine
The parameter and function table :
|DCS-25 Superfine Powder Weighing Packing Machine|
|Scope of application|
|Suitable materials||Granular material or powder material with fine flowability|
|Suitable packing container||Open mouth bag, box, barrel|
|Feeding type||Horizontal screw|
|Alternative feeding type||Vibrator, belt|
|Packing Accuracy||Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)|
Main specialty .
Scope of application: Granular material or powder material of Packing bags(boxes and pails)
Can be made into twin-type pakcer(except DCS-25(GO7N)and DCS-25(PO4G))
Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject
conveyor, pallet magazine, stacker.
Our Services :
1. one year guarantee for whole machine except for wear parts;
2. 24 hours technical support by email;
3. calling service;
4. user manual available;
5. reminding for the service life of the wearing parts;
6. installation guide for clients from both China and abroad;
7. maintance and replacement service;
8. whole process trainling and guidance from our technicians.High quality of after-sales service symbolizes our brand and ability. We pursue not only good quality products, but also best after sales service. Your satisfaction is our final purpose.
1. Are you a trading company or a factory?
---We are factory sell directly, and welcome to visit our factory in Changshu city,Suzhou,Jiangsu Province China.
2. Can you guarantee the quality of your valve bag packing machine?
---We have passed CE&ISO9001, and our packing machines have been sent to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.
3. How many years have you been manufacturing this machine?
---Since the foudation of our company, we have been manufacturing the machine, which updated many times, now the machine runs stable and of high quality.
