DCS-25PV2 Valve Mouth Bag Packing Machine
Feeding type : single screw
Powder Valve Bag Packer for Non-sticky Powder With High Bulk Density, Or Fine Particle Material
Broad Category:Valve Bag Packer
Name: DCS-25PV2 Powder’s Valve Bag Packer (Single Screw Feeder Type)
A. What is the 25 kg packing machine ?
It is used to transport materials (normally powder or granule ) from the silo to the packaging container, and it also has the function of weighing,
B. Discription of 25 Kg packing machine ?
Electronic quantitative packaging scale is a combination of electronic scale and automatic control. It weighs when feeding until it is close to the preset packaging value. The computer quantitative packing scale is composed of several independent weighing units with the structure of feeding and discharging. The computer quantitative packing scale is suitable for the quantitative packing of 25kg-50kg, and the electronic quantitative packing scale is widely used.
C. Application of 25Kg packing machine:
Powder quantitative packaging machine is suitable for the quantitative packaging of powder, powder and powder materials in chemical, food, agricultural and sideline products industries, such as milk powder, starch, pesticide, veterinary medicine, premix, additive, condiment, feed, enzyme preparation, etc.; powder quantitative packaging machine is a combination of machine and instrument, controlled by single chip microcomputer, with automatic quantitative, automatic filling and automatic adjustment of measurement error Etc.
D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine
1.Scope of application :
1)Applicable material:
Non-sticky powder with high bulk density, or fine particle material.
2)Applicable filling containers:
Paper bag,film or woven bags with breathable micropores .
2. Technical parameters :
Packer Model |
DCS-25PV2 ( Single Screw Feeder Type) |
Capacity ( Bags / Hour ) |
60-120 |
Packing Target Weighing Range(Kg) |
15-50 |
Weighing Accuracy |
±0.2% @2δ |
3.Functions and Characteristics :
1) Gross wight type;
2) Screw feeder;
3) High weighing accuracy is guaranteed by the load cell and digital weighing controller
4) High degree of automation, automatic taring , automatic filling, automatic weighing, automatic dedustingiing, easy to operate;
5) A inflatable rubber pipe is sleeved on the filling nozzle of the valve bag packaging machine. When the filling mouth of the empty valve bag is placed on the filling nozzle, the rubble pipe sleeved on the filling nozzle begin to inflate and expand automatically to seal the filling mouth of the valve bag completely to prevent dust leakage during filling;
Valve Bag Packer
The parameter and function table of the valve bag packer:
DCS-25PV1(1) (exhausting type) |

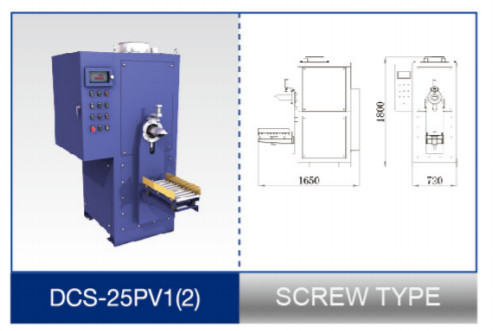

DCS-25PV1(2) (screw type) |
DCS-25PV1(3) (airflow type) |
DCS-25PV1(5) (horizontal impeller) |
DCS-25PV1(6) (vertiacl impeller) |
|
Scope of application |
|||||
Suitable materials |
Powder and ultrafine powder of good Air affinity |
Powder and thin granule |
Powder and thin granule |
Powder and ultrafine powder |
Powder and ultrafine powder |
Suitable packing container |
Upper and lower spiral air supply | single screw | air flow | Horizontal impeller | Vertical impeller |
Technical parameters |
|||||
Weighing range(Kg) |
10-50 | 10-50 | 10-50 | 10-50 | 10-50 |
Packing speed(bag/H) |
30-180 | 30-120 | 30-200 | 30-250 | 30-250 |
Packing Accuracy |
Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard) |
||||
Control function |
|||||
Automatic tare |
○ | ○ | ○ | ○ | ○ |
Automatic quick and slow feeding |
○ | ○ | ○ | ○ | ○ |
Automatic free fall compensation |
○ | ○ | ○ | ○ | ○ |
Automatic minus deviation |
▲ | ▲ | ▲ | × | × |
Automatic over weight alarms |
○ | ○ | ○ | ○ | ○ |
Automatic self diagnosis failure |
○ | ○ | ○ | ○ | ○ |
Manual/Automatic mode conversation |
○ | ○ | ○ | ○ | ○ |
Communication port |
▲ | ▲ | ▲ | ▲ | ▲ |
|
|||||
Manual adjusting the height of bag |
○ | ○ | ○ | ○ | ○ |
Suit for open and valve bag function |
▲ | ▲ | ▲ | ▲ | ▲ |
Important auxiliary function |
|||||
Blow bag function in advance |
○ | ▲ | ○ | ○ | ○ |
Arch break function of hopper |
○ | ○ | ○ | ○ | ○ |
Vibration at the bottom of the bag |
○ | ○ | ○ | ○ | ○ |
Powder protection |
|||||
Inflatable seal |
▲ | × | ▲ | × | × |
Negative pressure dusting(not contain duster) |
○ | ○ | ○ | ○ | ○ |
Automatic blow valve mouth |
○ | × | ○ | ▲ | ▲ |
Safety protection |
|||||
Electrostatic grounding |
▲ | ▲ | ▲ | ▲ | ▲ |
|
▲ | ▲ | ▲ | ▲ | ▲ |
Stop packing when lose power |
○ | ○ | ○ | ○ | ○ |
Emergency stop |
○ | ○ | ○ | ○ | ○ |
Ex-proof |
▲ | ▲ | ▲ | ▲ | ▲ |
Mark: “○”is standard function;“▲”is choose function ;“×”is not has function |
main features:
*valve bag packing for Powder and ultrafine powder.
*Can be twin-type packer
*Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.
