Semi Automatic Valve Bag Packer Bagging Machine Suction Densifying Type 60-120 Bags Per Hour ±0.5%@2δ Accuracy
A. What is the 25 kg packing machine ?
It is used to transport materials (normally powder or granule ) from the silo to the packaging container, and it also has the function of weighing,
B. Discription of 25 Kg packing machine ?
Electronic quantitative packaging scale is a combination of electronic scale and automatic control. It weighs when feeding until it is close to the preset packaging value. The computer quantitative packing scale is composed of several independent weighing units with the structure of feeding and discharging. The computer quantitative packing scale is suitable for the quantitative packing of 25kg-50kg, and the electronic quantitative packing scale is widely used.
C. Application of 25Kg packing machine:
Powder quantitative packaging machine is suitable for the quantitative packaging of powder, powder and powder materials in chemical, food, agricultural and sideline products industries, such as milk powder, starch, pesticide, veterinary medicine, premix, additive, condiment, feed, enzyme preparation, etc.; powder quantitative packaging machine is a combination of machine and instrument, controlled by single chip microcomputer, with automatic quantitative, automatic filling and automatic adjustment of measurement error Etc.
D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine

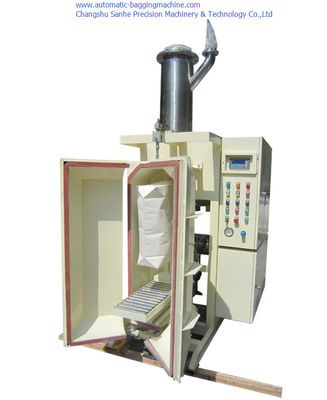

Name: DCS-25PV6 Powder’s Valve Bag Packer ( Suction Densifying Type)
1.Scope of application :
1)Applicable material:
Super fine powder, The powder with much air , or the powder with a very low bulk density .
2)Applicable filling containers:
Paper bag,film or woven bags with breathable micropores .
2. Technical parameters :
|
Packer Model |
DCS-25PV6 ( Suction Densifying Type ) |
|
Capacity ( Bags / Hour ) |
60-120 Bags / Hour |
|
Packing Target Weighing Range( Kg ) |
15-50 Kg |
|
Weighing Accuracy |
±0.5% @2δ |
3.Functions and Characteristics :
1)Gross wight type;
2)Pneumatic Feeder;
3)High weighing accuracy is guaranteed by the load cell and digital weighing controller;
4)High degree of automation, automatic taring , automatic filling, automatic weighing, automatic dedustingiing, easy to operate;
5)The packaging machine has a vacuum chamber, and the feeding nozzle of the packaging machine is installed in the vacuum chamber. When packaging, the packaging bag is covered on the feeding nozzle of the vacuum chamber, and the vacuum chamber door is closed. The packaging machine feeds the packaging bag while vacuuming the vacuum chamber, so that there is a pressure difference between the inside and outside of the packaging machine, positive pressure inside the packaging bag and negative pressure outside the packaging bag. In this way, the air in the materials in the packaging bag is When it is pumped out of the packaging bag, it can not only vacuum and densify the materials in the packaging bag.
6)As the quantitative packing process of the packing machine is completed in a fully sealed vacuum chamber equipped with dedusting mechanism , there is no dust escaping from the whole packing process to pollute the environment.
Advantage of our weighing packing machine : Fast packing, high precision, less dust .
