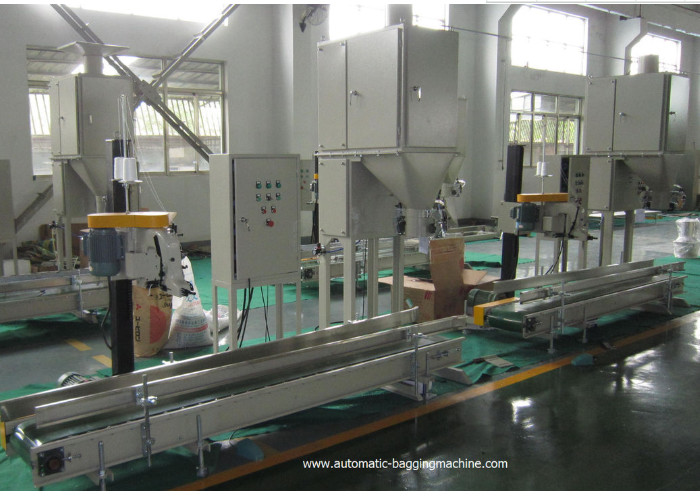

DCS-25 25 Kg Bagging Machine Weighing Controller Filling For Granule / Powder
Discription of 25 Kg packing Scale machine ?
Electronic quantitative packaging scale is a combination of electronic scale and automatic control. It weighs when feeding until it is close to the preset packaging value. The computer quantitative packing scale is composed of several independent weighing units with the structure of feeding and discharging. The computer quantitative packing scale is suitable for the quantitative packing of 25kg-50kg, and the electronic quantitative packing scale is widely used.
Application of 25Kg packing scale machine:
Powder quantitative packaging machine is suitable for the quantitative packaging of powder, powder and powder materials in chemical, food, agricultural and sideline products industries, such as milk powder, starch, pesticide, veterinary medicine, premix, additive, condiment, feed, enzyme preparation, etc.; powder quantitative packaging machine is a combination of machine and instrument, controlled by single chip microcomputer, with automatic quantitative, automatic filling and automatic adjustment of measurement error Etc.
The parameter and function table :
| DCS-25 | |
| Scope of application | |
| Suitable materials | Granular material or powder material with fine flowability |
| Suitable packing container | Open mouth bag, box, barrel |
| Feeding type | Gravity |
| Alternative feeding type | Vibrator |
| Technical parameters | |
| Weighing range(Kg) | 25 kg |
| Packing speed(bag/H) | 160-180 bag / H ( Gross weight ) 200-300 bags / H ( Net weight ) |
| Packing Accuracy | Generally ( +/- ) 0.2% FS, 2δ ( Note : special materials shall depend on the industrial standard ) |
Product Characteristics :
Used For particles .
Divided into fast Feeding slow Feeding .
It can be divided into: net weight and gross weight .
Configure the machine according to the packing speed required by the customer .
General bag clamping mechanism .
Feeding way: Air cylinder or servo to control arc door .
Machine material is divided into: contact material part is SS304, others are carbon steel painting. Or customized according to customer requirements .
Packing speed : 160-180bag/H(Gross weight) 200-300bags/H(Net weight)
|
DCS-25GO7N) net weight type for granules |
DCS-25(PO2G) Gross weight type for granules |
DCS-25(PO2N) Net weight type for powder |
DCS-25(PO4G) Vertical screw type |
|
|
Scope of application |
||||
|
Suitable materials |
Granular material or powder material with fine flowability |
powder material or Fine powder |
powder material |
|
|
Suitable packing container |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
|
Feeding type |
Gravity |
horizontal screw |
horizontal screw |
Vertical screw |
|
Alternative feeding type |
Vibrator |
Vibrator, belt |
Vibrator, belt |
× |
|
Technical parameters |
||||
|
Weighing range |
1-100 | 10-50 | 10-50 | 1-50 |
|
Packing speed(bag/H) |
300-800 | 100-200 | 100-500 | 100-180 |
|
Packing Accuracy |
Generally (+/- )0.2% ( Note: special materials shall depend on the industrial standard ) |
|||
|
Control function |
||||
|
Automatic tare |
○ | ○ | ○ | ○ |
|
Automatic quick and slow feeding |
○ | ○ | ○ | ○ |
|
Automatic free fall compensation |
○ | ○ | ○ | ○ |
|
Automatic minus deviation |
▲ | ▲ | ▲ | ▲ |
|
Automatic over weight alarms |
○ | ○ | ○ | ○ |
|
diagnosis failure |
○ | ○ | ○ | ○ |
|
Manual/Automatic mode conversation |
○ | ○ | ○ | ○ |
|
Communication port |
▲ | ▲ | ▲ | ▲ |
|
|
||||
|
Manual adjusting the height of bag |
○ | ○ | ○ | ○ |
|
Important auxiliary function |
||||
|
Arch break function of hopper |
× | ○ | ○ | ○ |
|
Vibration at the bottom of the bag |
▲ | ▲ | ▲ | ▲ |
|
Powder protection |
||||
|
Inflatable seal |
▲ | ▲ | ▲ | ▲ |
|
Negative pressure dusting(not contain duster) |
▲ | ○ | ○ | ○ |
|
Valve for leak-proof |
× | ▲ | ▲ | ▲ |
|
Safety protection |
||||
|
Electrostatic grounding |
▲ | ▲ | ▲ | ▲ |
| ▲ | ▲ | ▲ | ▲ | |
|
when lose power |
○ | ○ | ○ | ○ |
|
Emergency stop |
○ | ○ | ○ | ○ |
|
Ex-proof |
▲ | ▲ | ▲ | ▲ |
|
Original mode |
DCS-25 | DCS-25FW | DCS-25F | DCS-25FL |
|
Mark: “○”is standard function；“▲”is choose function ；“×”is not has function |
||||
Main specialty
