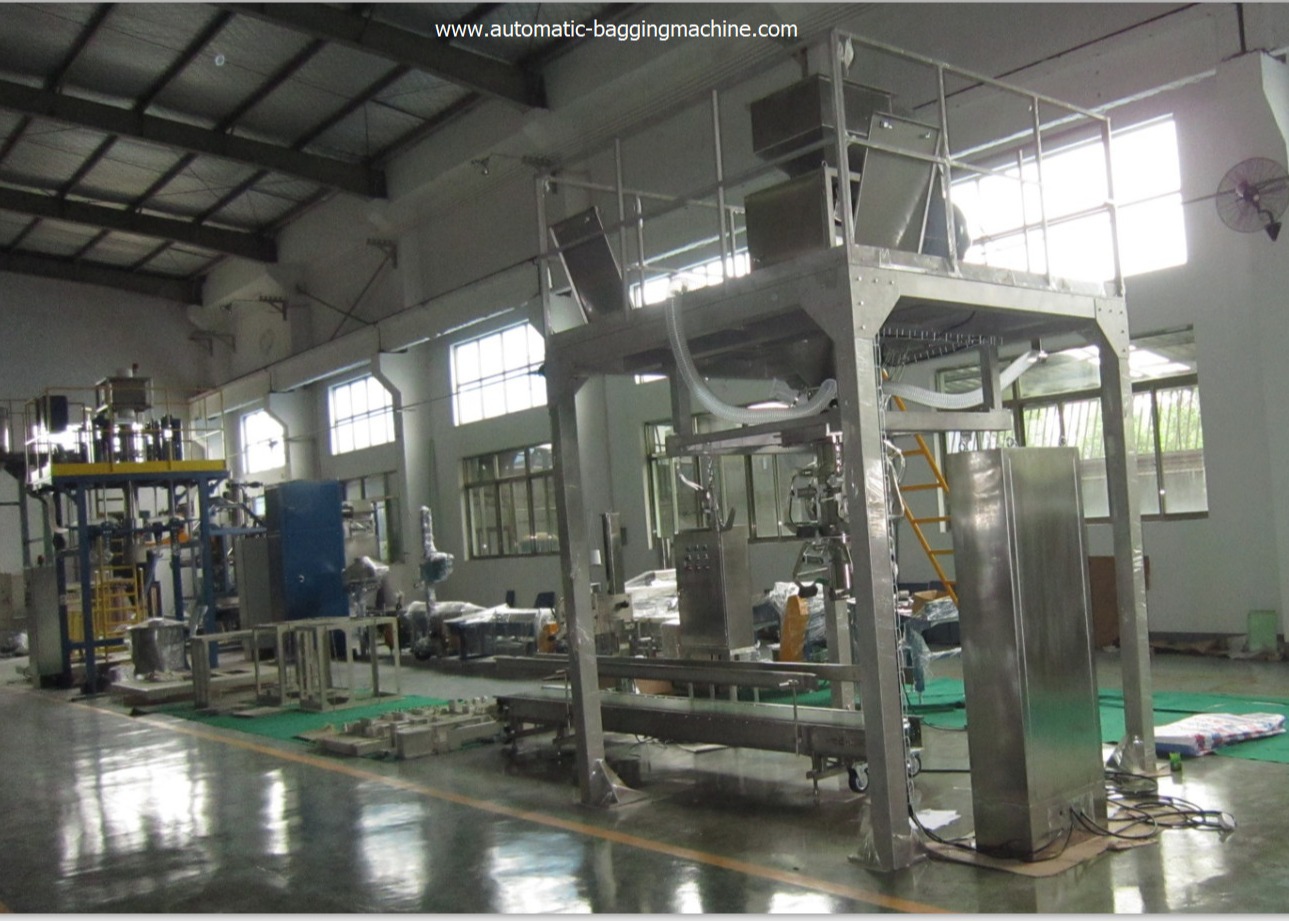

Automatic 25 Kg Bag Packing Machinery Weighing Equipment Indicator Parts Weighing Packing Scale Filling Machine Packer
A. What is the 25 kg packing machine ?
It is used to transport materials (normally powder or granule ) from the silo to the packaging container, and it also has the function of weighing,
B. Application of 25Kg packing machine:
Powder quantitative packaging machine is suitable for the quantitative packaging of powder, powder and powder materials in chemical, food, agricultural and sideline products industries, such as milk powder, starch, pesticide, veterinary medicine, premix, additive, condiment, feed, enzyme preparation, etc.; powder quantitative packaging machine is a combination of machine and instrument, controlled by single chip microcomputer, with automatic quantitative, automatic filling and automatic adjustment of measurement error Etc.
The parameter and function table :
| DCS-25 | |
| Scope of application | |
| Suitable materials | Granular material or powder material with fine flowability |
| Suitable packing container | Open mouth bag, box, barrel |
| Feeding type | Gravity |
| Alternative feeding type | Vibrator |
| Technical parameters | |
| Weighing range(Kg) | 25 kg |
| Packing speed(bag/H) | 160-180 bag / H ( Gross weight ) 200-300 bags / H ( Net weight ) |
| Packing Accuracy | Generally ( +/- ) 0.2% FS, 2δ ( Note : special materials shall depend on the industrial standard ) |
Product feature:
♦. High Accuracy and high speed
♦. Packaging powdery in 160-300 kg bags
♦. Double auger ,Big and small ,Assure you good accuracy and speed.
♦. Chinese/English or custom your language in the touch screen.
♦. Reasonable mechanical structure, easy to change size parts and clean up.
♦. Through changing accessories, the machine is suitable for various powder products.
♦. We use famous brand electric ,more steady .
♦. Machine working without powder ,no noisy .
Technological process of the equipment
Automatic lifting materials→Automatic weighing machine → Automatic bag packaging unit (pick up bags, welt bags, clamp bags, open bags, blank) →Horizontal automatic sealing machine unit (automatic conveying, sealing bags, cut lines) → Finished product output → Automatic conveying
|
DCS-25GO7N) net weight type for granules |
DCS-25(PO2G) Gross weight type for granules |
DCS-25(PO2N) Net weight type for powder |
DCS-25(PO4G) Vertical screw type |
|
|
Scope of application |
||||
|
Suitable materials |
Granular material or powder material with fine flowability |
powder material or Fine powder |
powder material |
|
|
Suitable packing container |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
|
Feeding type |
Gravity |
horizontal screw |
horizontal screw |
Vertical screw |
|
Alternative feeding type |
Vibrator |
Vibrator, belt |
Vibrator, belt |
× |
|
Technical parameters |
||||
|
Weighing range |
1-100 | 10-50 | 10-50 | 1-50 |
|
Packing speed(bag/H) |
300-800 | 100-200 | 100-500 | 100-180 |
|
Packing Accuracy |
Generally (+/- )0.2% ( Note: special materials shall depend on the industrial standard ) |
|||
|
Control function |
||||
|
Automatic tare |
○ | ○ | ○ | ○ |
|
Automatic quick and slow feeding |
○ | ○ | ○ | ○ |
|
Automatic free fall compensation |
○ | ○ | ○ | ○ |
|
Automatic minus deviation |
▲ | ▲ | ▲ | ▲ |
| Automatic over weight alarms | ○ | ○ | ○ | ○ |
| diagnosis failure | ○ | ○ | ○ | ○ |
|
Manual/Automatic mode conversation |
○ | ○ | ○ | ○ |
|
Communication port |
▲ | ▲ | ▲ | ▲ |
|
|
||||
| Manual adjusting the height of bag | ○ | ○ | ○ | ○ |
| Important auxiliary function | ||||
| Arch break function of hopper | × | ○ | ○ | ○ |
| Vibration at the bottom of the bag | ▲ | ▲ | ▲ | ▲ |
| Powder protection | ||||
| Inflatable seal | ▲ | ▲ | ▲ | ▲ |
| Negative pressure dusting(not contain duster) | ▲ | ○ | ○ | ○ |
| Valve for leak-proof | × | ▲ | ▲ | ▲ |
|
Safety protection |
||||
| Electrostatic grounding | ▲ | ▲ | ▲ | ▲ |
| ionic wind remove static | ▲ | ▲ | ▲ | ▲ |
| when lose power | ○ | ○ | ○ | ○ |
| Emergency stop | ○ | ○ | ○ | ○ |
| Ex-proof | ▲ | ▲ | ▲ | ▲ |
| Original mode | DCS-25 | DCS-25FW | DCS-25F | DCS-25FL |
| Mark: “○”is standard function；“▲”is choose function ；“×”is not has function | ||||
Main specialty
