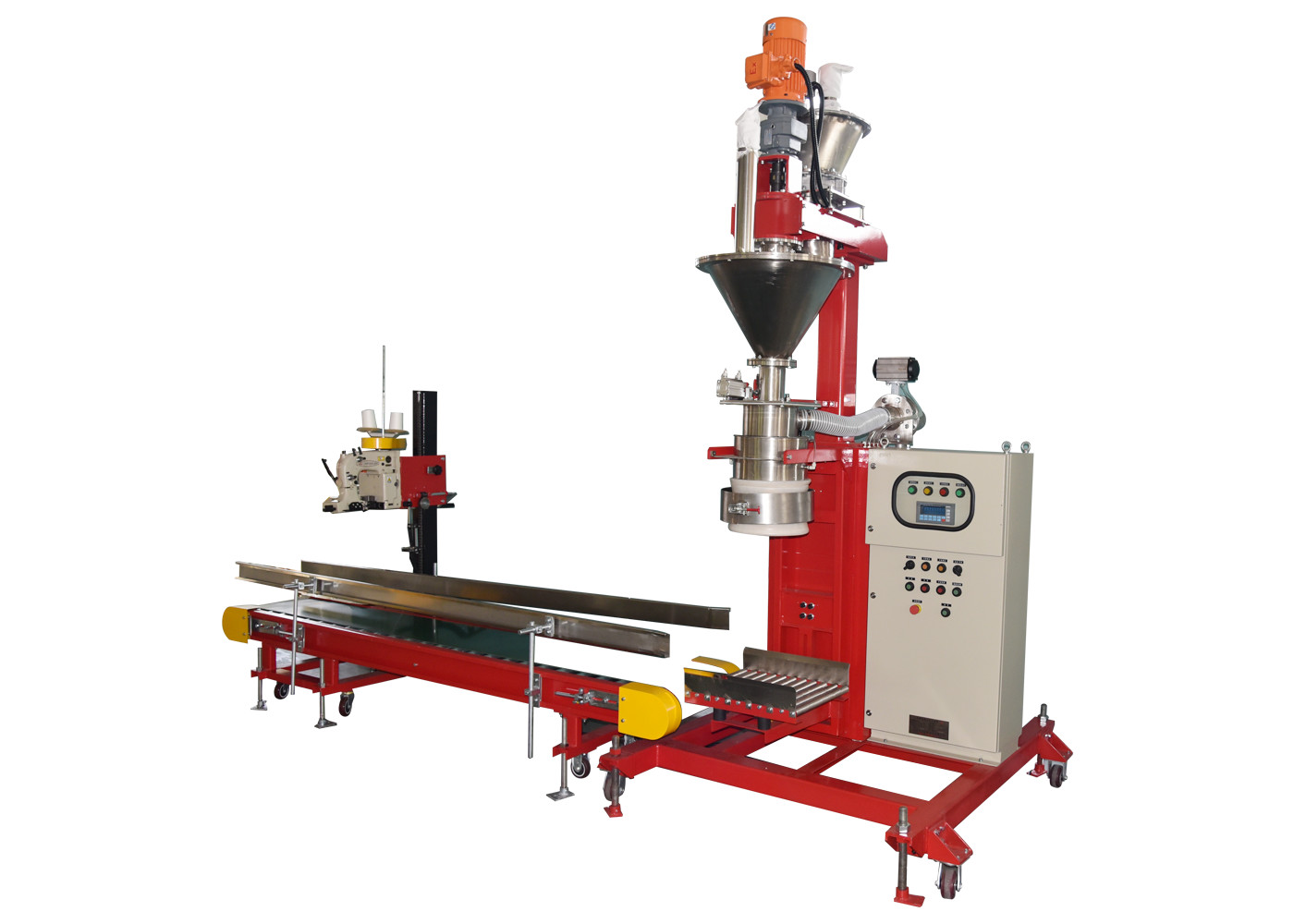

DCS-25FW Open Mouth Packing Machine Fertilizer Bagging Equipment
Scope of application: Fertilizer Bagging Equipment
Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.
The Fertilizer Bagging Equipment parameter and function table :
| DCS-25 FW Fertilizer Bagging Equipment | |
| Scope of application | |
| Suitable materials | Fertilizer Bagging Equipment |
| Suitable packing container | Open mouth bag |
| Feeding type | Screw |
| Alternative feeding type | |
| Technical parameters | |
| Weighing range(Kg) | 25 |
| Packing speed(bag/H) | 100-200 |
| Packing Accuracy |
Generally (+/- )0.2% (Note: special materials shall depend on the industrial standard) |
Fertilizer Bagging Equipment Application : Kinds of powder / partical
Fertilizer Bagging Equipment Bagger FAQ :
1. Are all machinery your factory made?
Our factory make the filling machine,sealing machine,capping machine,conveyor,packaging machine,washing machine,labeling machine and some other machine.We don't make water purification and bottle making machine.
2. Are you manufactory or trading company?
We are industrial manufacturer,Which located in Taicang City.It is very near to shanghai.If you arrive at shanghai ,we can pick you up to visit our factory.
3. Do you have any technical supports?
Yes,We have a professional team of engineers who owned many installation,debug and training experiences abroad,are available to service machinery overseas.
4. How can I know the machinery quality before I order?
We will invite you visiting our factory to check the machines quality,and show the machine running for you in our factory.If you don't have time to visit our factory we will record the video for you and try our best meet your requirement.We also can provide different test certificate as your requirement.
|
DCS-25GO7N) net weight type for granules |
DCS-25(PO2G) Gross weight type for granules |
DCS-25(PO2N) Net weight type for powder |
DCS-25(PO4G) Vertical screw type |
|
|
Scope of application |
||||
|
Suitable materials |
Granular material or powder material with fine flowability |
powder material or Fine powder |
powder material |
|
|
Suitable packing container |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
|
Feeding type |
Gravity |
horizontal screw |
horizontal screw |
Vertical screw |
|
Alternative feeding type |
Vibrator |
Vibrator, belt |
Vibrator, belt |
× |
|
Technical parameters |
||||
|
Weighing range |
1-100 | 10-50 | 10-50 | 1-50 |
|
Packing speed(bag/H) |
300-800 | 100-200 | 100-500 | 100-180 |
|
Packing Accuracy |
Generally (+/- )0.2% ( Note: special materials shall depend on the industrial standard ) |
|||
|
Control function |
||||
|
Automatic tare |
○ | ○ | ○ | ○ |
|
Automatic quick and slow feeding |
○ | ○ | ○ | ○ |
|
Automatic free fall compensation |
○ | ○ | ○ | ○ |
|
Automatic minus deviation |
▲ | ▲ | ▲ | ▲ |
|
Automatic over weight alarms |
○ | ○ | ○ | ○ |
|
diagnosis failure |
○ | ○ | ○ | ○ |
|
Manual/Automatic mode conversation |
○ | ○ | ○ | ○ |
|
Communication port |
▲ | ▲ | ▲ | ▲ |
|
|
||||
|
Manual adjusting the height of bag |
○ | ○ | ○ | ○ |
|
Important auxiliary function |
||||
|
Arch break function of hopper |
× | ○ | ○ | ○ |
|
Vibration at the bottom of the bag |
▲ | ▲ | ▲ | ▲ |
|
Powder protection |
||||
|
Inflatable seal |
▲ | ▲ | ▲ | ▲ |
|
Negative pressure dusting(not contain duster) |
▲ | ○ | ○ | ○ |
|
Valve for leak-proof |
× | ▲ | ▲ | ▲ |
|
Safety protection |
||||
|
Electrostatic grounding |
▲ | ▲ | ▲ | ▲ |
| ▲ | ▲ | ▲ | ▲ | |
|
when lose power |
○ | ○ | ○ | ○ |
|
Emergency stop |
○ | ○ | ○ | ○ |
|
Ex-proof |
▲ | ▲ | ▲ | ▲ |
|
Original mode |
DCS-25 | DCS-25FW | DCS-25F | DCS-25FL |
|
Mark: “○”is standard function；“▲”is choose function ；“×”is not has function |
||||
Main specialty
Main sub-suppliers:
| Name OF Outsourcing | Sub-suppliers |
| Weighing Controller | Uniplus F701 / Zhi Mei or Jie Man |
| Load Cell | Mettler Toledo / Zhong Dian Hang Ce |
| PLC | Mitsubishi |
| Touch panel ( option ) | Mitsubishi |
| Fold edge sewing machine | De chao |
| Pneumatic Equipment | FESTO or SMC or airtac |
| Solenoid valve | FESTO or SMC or airtac |
| Photoelectric switch | Autonics |
| Metal detector | METRON German |
| Robot | FUJI EC-102 |
| Motor | Wan Nan |
| Sewing machine | De Chao |
| Electric cabinet | Tong Ke |
| General Electric Component | SCHNEIDER |
Utilities ( provided by buyer )
1. Power:
AC380V±10％；50Hz±2%(three phase and five wires)；
2. Compressed Air:
Pressure: 0.55~0.7 Mpa；
Consumption: 0.3N m3/min；
3. Temperature: -10- +40(℃)
4. Relative humidity: ≤90% (no coagulation water)
5. De-dusting
Negative pressure:6-8 pa
Blowing rate: 1800m³/H
Advantage : Fast packing speed , high precision, less dust
Our hot sale products :
1. 25 kg automatic ( open mouth bag ) packing & palletizing line,
2. 25 kg automatic ( valve type bag ) packing & palletizing line,
3. ton bag packing machine.
4. liquid filling machine (10L-50L;/ 50L-250L; / 1500L)
95% of china white carbon black factory use our packing machine
