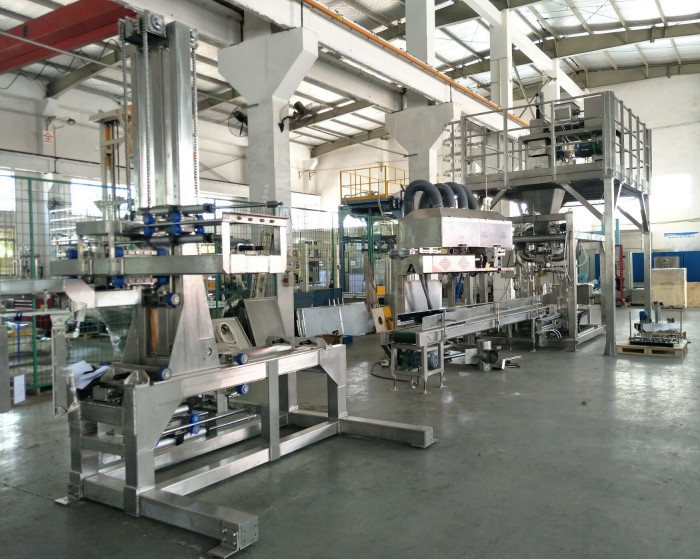

DCS-25 25 kg Fertilizer Packing Scale/ Fertilizer Packing Machine Manufacturer
What is 25 kg electronic packing scale?
Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.
The parameter and function table :
| DCS-25 weighing bagging machine | |
| Scope of application | |
| Suitable materials | Powder and thin granule of good Air affinity |
| Suitable packing container | Open mouth bag |
| Feeding type | Gravity |
| Alternative feeding type | × |
| Technical parameters | |
| Weighing range(Kg) | 25 |
| Packing speed(bag/H) | 30-100 |
| Packing Accuracy | Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard) |
25 kg Fertilizer Packing Scale/ Fertilizer Packing Machine Manufacturer
1. Application range of the sugar packing machine:
The system is applied to quantitative automatic weighing, filling, kneading, and accumulating weigh and times, stitching / thermal sealing and conveying with manual assistant for powder material in the flour factory or material such as pellet shape.
Generally, the quantitative filling machine includes packing scales, sack closer, and belt conveyor these three parts.
2. Features of Sugar Packing Machine:
1) Take three speeds feeding to guarantee the precision at min weight and the speed at max weight
2) The head of bag stitching machine, conveyor, and hot sealing machine can rise and fall. Also, the system is applied to sealing and convey with max and min bags.
3) There is shock-absorbing device in weighing system; It could avoid the shock of other devices through floor and tube to affect the weighing system.
4) Good seal in system, and it has dust catcher and aspirator.
5) Guide groves in conveyor roller and guide bars in conveyor belts to avoid excursion and cracks.
3. Function of Sugar Packing Machine:
* There is detecting device in system.
* Processes function of automatic modifying drop height.
* Processes function of self-test, error pilot and fault code indication.
* With the serial interfere to communicate the computer.
* With five-figure password to control the accumulator in system.
* Pre-set filling number in system.
4. Specification of Sugar Packing Machine:
Machine Height: 1.5m
Motor power: 5.5 kw
Length of belt conveyor: 2.2m
Motor of the belt conveyor: 0.37kw
|
DCS-25GO7N) net weight type for granules |
DCS-25(PO2G) Gross weight type for granules |
DCS-25(PO2N) Net weight type for powder |
DCS-25(PO4G) Vertical screw type |
|
|
Scope of application |
||||
|
Suitable materials |
Granular material or powder material with fine flowability |
powder material or Fine powder |
powder material |
|
|
Suitable packing container |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
|
Feeding type |
Gravity |
horizontal screw |
horizontal screw |
Vertical screw |
|
Alternative feeding type |
Vibrator |
Vibrator, belt |
Vibrator, belt |
× |
|
Technical parameters |
||||
|
Weighing range |
1-100 | 10-50 | 10-50 | 1-50 |
|
Packing speed(bag/H) |
300-800 | 100-200 | 100-500 | 100-180 |
|
Packing Accuracy |
Generally (+/- )0.2% ( Note: special materials shall depend on the industrial standard ) |
|||
|
Control function |
||||
|
Automatic tare |
○ | ○ | ○ | ○ |
|
Automatic quick and slow feeding |
○ | ○ | ○ | ○ |
|
Automatic free fall compensation |
○ | ○ | ○ | ○ |
|
Automatic minus deviation |
▲ | ▲ | ▲ | ▲ |
| Automatic over weight alarms | ○ | ○ | ○ | ○ |
| diagnosis failure | ○ | ○ | ○ | ○ |
|
Manual/Automatic mode conversation |
○ | ○ | ○ | ○ |
|
Communication port |
▲ | ▲ | ▲ | ▲ |
|
|
||||
| Manual adjusting the height of bag | ○ | ○ | ○ | ○ |
| Important auxiliary function | ||||
| Arch break function of hopper | × | ○ | ○ | ○ |
| Vibration at the bottom of the bag | ▲ | ▲ | ▲ | ▲ |
| Powder protection | ||||
| Inflatable seal | ▲ | ▲ | ▲ | ▲ |
| Negative pressure dusting(not contain duster) | ▲ | ○ | ○ | ○ |
| Valve for leak-proof | × | ▲ | ▲ | ▲ |
|
Safety protection |
||||
| Electrostatic grounding | ▲ | ▲ | ▲ | ▲ |
| ionic wind remove static | ▲ | ▲ | ▲ | ▲ |
| when lose power | ○ | ○ | ○ | ○ |
| Emergency stop | ○ | ○ | ○ | ○ |
| Ex-proof | ▲ | ▲ | ▲ | ▲ |
| Original mode | DCS-25 | DCS-25FW | DCS-25F | DCS-25FL |
| Mark: “○”is standard function；“▲”is choose function ；“×”is not has function | ||||
