DCS-25PV3 Valve Bagging Packer Machine Weighing Packing Scale Filling With Fast Speed
A. What is the 25 kg packing machine ?
It is used to transport materials (normally powder or granule ) from the silo to the packaging container, and it also has the function of weighing,
B. Application of 25Kg packing machine:
Powder quantitative packaging machine is suitable for the quantitative packaging of powder, powder and powder materials in chemical, food, agricultural and sideline products industries, such as milk powder, starch, pesticide, veterinary medicine, premix, additive, condiment, feed, enzyme preparation, etc.; powder quantitative packaging machine is a combination of machine and instrument, controlled by single chip microcomputer, with automatic quantitative, automatic filling and automatic adjustment of measurement error Etc.
The parameter and function table :
| DCS-25PV3 | |
| Scope of application | |
| Suitable materials | Powder and thin granule |
| Suitable packing container | valve bag |
| Feeding type | Gravity |
| Alternative feeding type | Vibrator |
| Technical parameters | |
| Weighing range(Kg) | 25 kg |
| Packing speed(bag/H) | 80-120 bag / H ( Gross weight ) 200-300 bags / H ( Net weight ) |
| Packing Accuracy | Generally ( +/- ) 0.2% FS, 2δ ( Note : special materials shall depend on the industrial standard ) |
Technological process of the equipment
Automatic lifting materials→Automatic weighing machine → Automatic bag packaging unit (pick up bags, welt bags, clamp bags, open bags, blank) →Horizontal automatic sealing machine unit (automatic conveying, sealing bags, cut lines) → Finished product output → Automatic conveying

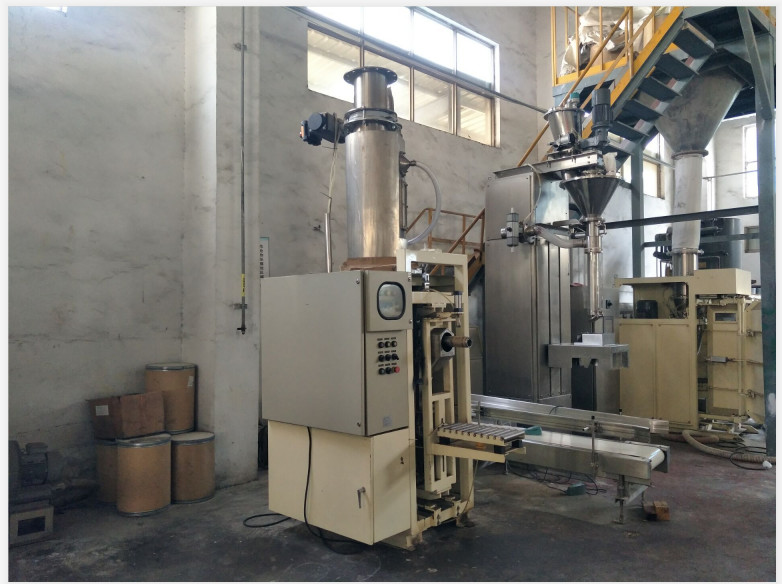

Valve Bag Packer
The parameter and function table of the valve bag packer:
|
DCS-25PV1(1) (exhausting type) |
DCS-25PV1(2) (screw type) |
DCS-25PV1(3) (airflow type) |
DCS-25PV1(5) (horizontal impeller) |
DCS-25PV1(6) (vertiacl impeller) |
|
|
Scope of application |
|||||
|
Suitable materials |
Powder and ultrafine powder of good Air affinity |
Powder and thin granule |
Powder and thin granule |
Powder and ultrafine powder |
Powder and ultrafine powder |
|
Suitable packing container |
Upper and lower spiral air supply | single screw | air flow | Horizontal impeller | Vertical impeller |
|
Technical parameters |
|||||
|
Weighing range(Kg) |
10-50 | 10-50 | 10-50 | 10-50 | 10-50 |
|
Packing speed(bag/H) |
30-180 | 30-120 | 30-200 | 30-250 | 30-250 |
|
Packing Accuracy |
Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard) |
||||
|
Control function |
|||||
|
Automatic tare |
○ | ○ | ○ | ○ | ○ |
|
Automatic quick and slow feeding |
○ | ○ | ○ | ○ | ○ |
|
Automatic free fall compensation |
○ | ○ | ○ | ○ | ○ |
|
Automatic minus deviation |
▲ | ▲ | ▲ | × | × |
|
Automatic over weight alarms |
○ | ○ | ○ | ○ | ○ |
|
Automatic self diagnosis failure |
○ | ○ | ○ | ○ | ○ |
|
Manual/Automatic mode conversation |
○ | ○ | ○ | ○ | ○ |
|
Communication port |
▲ | ▲ | ▲ | ▲ | ▲ |
|
|
|||||
|
Manual adjusting the height of bag |
○ | ○ | ○ | ○ | ○ |
|
Suit for open and valve bag function |
▲ | ▲ | ▲ | ▲ | ▲ |
|
Important auxiliary function |
|||||
|
Blow bag function in advance |
○ | ▲ | ○ | ○ | ○ |
|
Arch break function of hopper |
○ | ○ | ○ | ○ | ○ |
|
Vibration at the bottom of the bag |
○ | ○ | ○ | ○ | ○ |
|
Powder protection |
|||||
|
Inflatable seal |
▲ | × | ▲ | × | × |
|
Negative pressure dusting(not contain duster) |
○ | ○ | ○ | ○ | ○ |
|
Automatic blow valve mouth |
○ | × | ○ | ▲ | ▲ |
|
Safety protection |
|||||
|
Electrostatic grounding |
▲ | ▲ | ▲ | ▲ | ▲ |
|
|
▲ | ▲ | ▲ | ▲ | ▲ |
|
Stop packing when lose power |
○ | ○ | ○ | ○ | ○ |
|
Emergency stop |
○ | ○ | ○ | ○ | ○ |
|
Ex-proof |
▲ | ▲ | ▲ | ▲ | ▲ |
|
Mark: “○”is standard function；“▲”is choose function ；“×”is not has function |
|||||
main features:
*valve bag packing for Powder and ultrafine powder.
*Can be twin-type packer
*Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.
