Semi Automatic Weighing 25 Kg Bag Packing Machine
1 Set
MOQ
Negotiable
Price
Semi Automatic Weighing 25 Kg Bag Packing Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: ISO9001:2015, CE
Model Number: DCS-25
High Light:

25 kg bag weighing machine

,

Semi Automatic 25 Kg Bag Packer

Payment & Shipping Terms
Packaging Details: Wood Pallet
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: 90 Sets Per Month
Specifications
Product Name: 25 Kg Bagging Machine
Type: Weighing-type Filling Machine
Feed Cylinder Structure: Single-Room Feeding
Accuracy: Generally (+/- )0.2%FS,2δ
Origin: Suzhou
Weighing Range(kg): 25 Kg
Product Description

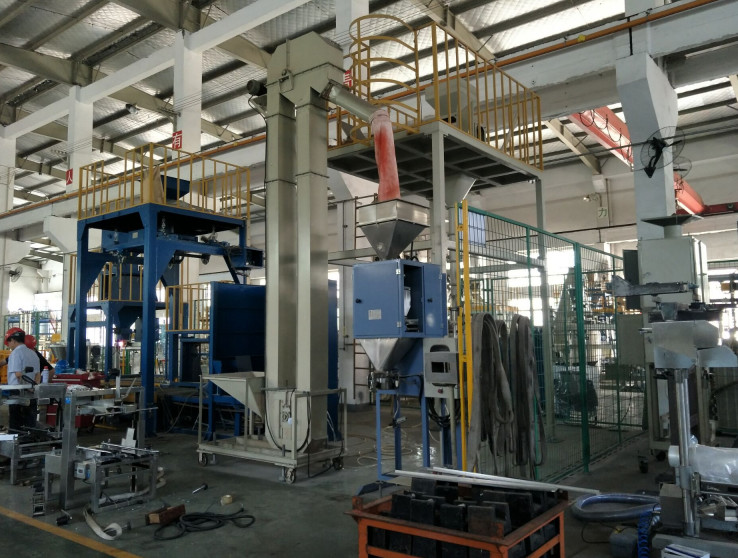

DCS-25 Semi Automatic Weighing Bagging Machine , Filling and Sewing Machine


A. What is the 25 kg packing machine ?
It is used to transport materials (normally powder or granule ) from the silo to the packaging container, and it also has the function of weighing,

B. Application of 25Kg packing machine:
Powder quantitative packaging machine is suitable for the quantitative packaging of powder, powder and powder materials in chemical, food, agricultural and sideline products industries, such as milk powder, starch, pesticide, veterinary medicine, premix, additive, condiment, feed, enzyme preparation, etc.; powder quantitative packaging machine is a combination of machine and instrument, controlled by single chip microcomputer, with automatic quantitative, automatic filling and automatic adjustment of measurement error Etc.


Semi Automatic Weighing 25 Kg Bag Packing Machine 0

Semi Automatic Weighing 25 Kg Bag Packing Machine 1

The parameter and function table :

  DCS-25
Scope of application
Suitable materials Granular material or powder material with fine flowability
Suitable packing container Open mouth bag, box, barrel
Feeding type Gravity
Alternative feeding type Vibrator
Technical parameters
Weighing range(Kg) 25 kg
Packing speed(bag/H) 160-180 bag / H ( Gross weight ) 200-300 bags / H ( Net weight )
Packing Accuracy Generally ( +/- ) 0.2% FS, 2δ ( Note : special materials shall depend on the industrial standard )




Our Service :


1. We can provide "one-stop purchasing" or "package program" system solutions and owns professional manufacturing equipment as well as a full range of technical support and after-sale service.


2. OEM, Customized can be all accepted.


3. Contact us any time when you feel free for our Open Mouth Weighing And Bagging Machine.




Please Send us The Details for Quatation :

The material (to be packed) parameter :
A. Product name ?
B. Diameter of the material (um or mm) ?
C. Form of product ( Granule or powder ) ?
D. Bulk density(ton/m3) ?
E. Flow ability ?
F. Moisture absorption ?
G. Causticity ?
H. Toxicity ?
I. Degree of ex-proof protection for the packing machine parts ?


Packing Paramete of Bagging Machine :
A. Packing speed (bag/hour) ?
B. Packaging weight per bag ( KG/bag ) ?
C. Weighing accuracy ?


Bag/Bucket Parameter :
A. Open mouth bag or valve type bag?
B. What material of the Bag/Bucket, PP bag, PE bag, Nylon Bag, Kraft paper, Paper-plastic composite (inner is plastic, outer is paper) ?
C. Bag size: width*height ( mm ) ?
D. Coiled bags or separate bags ?









DCS-25

net weight type for granules

DCS-25FW

Gross weight type for granules

DCS-25F

Net weight type for powder

DCS-25FL

Vertical screw type



Scope of application



Suitable materials



Granular material or powder material with fine flowability



powder material or Fine powder



powder material



Easy to bridging or raised dust of ultrafine powder



Suitable packing container



Open mouth bag, box, barrel



Open mouth bag, box, barrel



Open mouth bag, box, barrel



Open mouth bag, box, barrel



Feeding type



Gravity



horizontal screw



horizontal screw



Vertical screw



Alternative feeding type



Vibrator



Vibrator, belt



Vibrator, belt

×



Technical parameters



Weighing range

1-100 10-50 10-50 1-50



Packing speed(bag/H)

300-800 100-200 100-500 100-180



Packing Accuracy



Generally (+/- )0.2% ( Note: special materials shall depend on the industrial standard )



Control function



Automatic tare



Automatic quick and slow feeding



Automatic free fall compensation



Automatic minus deviation

Automatic over weight alarms

diagnosis failure



Manual/Automatic mode conversation



Communication port



Regulatory function

Manual adjusting the height of bag

Important auxiliary function

Arch break function of hopper

×

Vibration at the bottom of the bag

Powder protection

Inflatable seal

Negative pressure dusting(not contain duster)

Valve for leak-proof

×



Safety protection

Electrostatic grounding

ionic wind remove static

when lose power

Emergency stop

Ex-proof

Original mode

DCS-25 DCS-25FW DCS-25F DCS-25FL

Mark: “○”is standard function;“▲”is choose function ;“×”is not has function



Main specialty

  • Scope of application: Granular material or powder material of Packing bags(boxes and pails)
  • Can be made into twin-type pakcer(except DCS-25(GO7N)和DCS-25(PO4G))
  • Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.
