25Kg Weighing Filling Packing Scale Machine
1 Set
MOQ
90 days
Price
25Kg Weighing Filling Packing Scale Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: CE, ISO9001:2015
Model Number: DCS-25
High Light:

25Kg Bagging Machine

,

25 kg packing scale machine

,

25Kg Weighing Packing Scale Machine

Payment & Shipping Terms
Packaging Details: Wood Pallet
Delivery Time: 90 Days
Payment Terms: T/T, L/C
Supply Ability: 90 Set Per Month
Specifications
Product Name: 25Kg Bagging Machine
Packing Speed: 160-300 Bags Per Hour
Feeding Type: Gravity Type
Certification: ISO9001:2015. CE
Drive: Electric
Port: Shanghai
Product Description

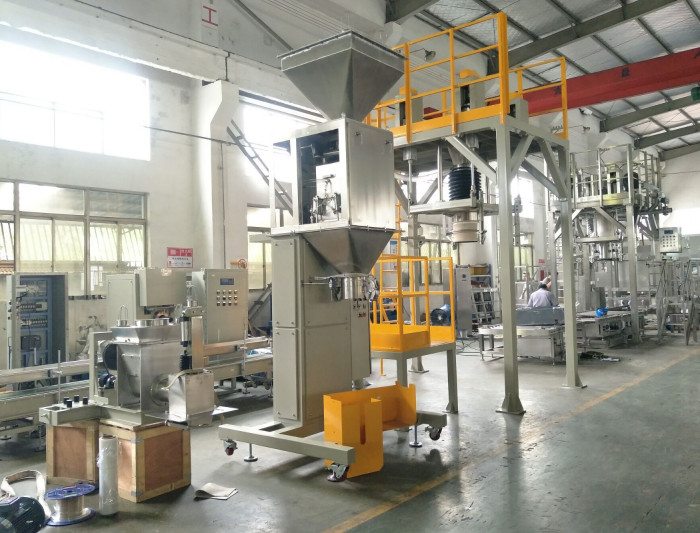

DCS-25 High speed Weighing filling packing scale machine single scale weighing 25 Kg Bagging



What is 25 kg electronic packing scale machine ?



Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.



Product Details

Model Number:DCS-25

Brand Name: Sanhe

Origin:China (mainland)

Key Specifications/Special Features:

  • New controller with high precision,working stable,can display the total weight,number of package,easy operation.
  • The adaptive software,having the function of automatic control parameters setting,automatic drop revising,over-weight warning and automatic diagnosis.
  • Products using importer sensor,pneumatic actuator,easy maintenance and non-pollution.
  • Wide packing range,high precision,it can match well with conveyor and sewing machine.
  • The main material body is carbon steel,with painted plastic,and material contact part is stainless steel,corrosion resistance,long service life.
  • Communication interface can be offered of meed,realization of data communication with PC.
  • It is suitable for the quantitative packaging of granules in food,grain,fodder,sugar making and chemical industry etc.
The parameter and function table :
  DCS-25 Packing Machine
Scope of application
Suitable materials Granular material or powder material with fine flowability
Suitable packing container Open mouth bag, box, barrel
Feeding type Gravity
Alternative feeding type Vibrator
Technical parameters
Weighing weight(Kg) 25Kg
Packing speed 160-180bag/H(Gross weight)   200-300bags/H(Net weight)
Packing Accuracy

Generally ( +/- ) 0.2% FS, 2δ

(Note: special materials shall depend on the industrial standard)



Used for partical / granule packing .



Product Characteristics :

Easy to operate and use

Bag-clamp equipment is advanced, material can be fully filled

Fill material system has material-stop equipment, accuracy high

Control, work parts all use imported parts, stable and reliable with sewing machine

Heat-sealing machine optional




Component parts :
Buffer hopper
Filling mouth
Arc feeding mechanism
Vibrating feeder
Dust removal interface
Bag clamping device
Load cell
Bag holder





Other Relative machine :



Automatic bag loading machine,

Sewing machine (or sealing machine),

Weight check machine,

Metal checker machine,

Flatner reshaping machine,

Bag falling and shaping machine,

Palletizer machine.





Main Export Markets:

  • Central/South America
  • Eastern Europe
  • Mid East/Africa
  • North America
  • Western Europe
  • Asia
  • Australasia

    Payment Details:

    • Payment Method:Telegraphic Transfer (TT,T/T)
    •

    Primary Competitive Advantages:

    • Brand-name Parts
    • Origin
    • Distributorships Offered
    • Experienced Staff
    • Green Product
    • Guarantee/Warranty
    • International Approvals
    • Packaging
    • Price
    • Product Features
    • Product Performance
    • Reputation
    • Service
    • Small Orders Accepted
    • Prompt Delivery
    • Quality Approvals
    • prompt shipment
    • produce according to request
    • competive price
