600 Bag / H Coffee Powder Filling Machine
1 Set
MOQ
Negotiable
Price
600 Bag / H Coffee Powder Filling Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: SANHE
Certification: ISO9001:2015, CE
Model Number: DCS-25
High Light:

25kg bagging machine

,

600 Bag / H bagging machine

,

PLC Core Automatic Bagging Machine

Payment & Shipping Terms
Packaging Details: Wood Pallet
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: 90 Sets Per Month
Specifications
Product Name: Packaging Machine
Function: Filling, Sealing
Production Capacity: 90 Sets Per Month
Core Components: Motor, PLC, Gear, Bearing
Weighing Device: Micro-computer
Packaging Container: Various Bags And Buckets
Product Description

DCS-25 Electronic Quantitative Filling Weighing Bagging Machine Manual Coffee Powder Filling Machine





A. What is the 25 kg packing scale machine ?

It is used to transport materials (normally powder or granule ) from the silo to the packaging container, and it also has the function of weighing,



B. Discription of 25 Kg packing scale machine ?

Electronic quantitative packaging scale is a combination of electronic scale and automatic control. It weighs when feeding until it is close to the preset packaging value. The computer quantitative packing scale is composed of several independent weighing units with the structure of feeding and discharging. The computer quantitative packing scale is suitable for the quantitative packing of 25kg-50kg, and the electronic quantitative packing scale is widely used.



C. Application of 25Kg packing scale machine:

Powder quantitative packaging machine is suitable for the quantitative packaging of powder, powder and powder materials in chemical, food, agricultural and sideline products industries, such as milk powder, starch, pesticide, veterinary medicine, premix, additive, condiment, feed, enzyme preparation, etc.; powder quantitative packaging machine is a combination of machine and instrument, controlled by single chip microcomputer, with automatic quantitative, automatic filling and automatic adjustment of measurement error Etc.



D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine



Brief description:
Powder big bag packing machine, which integrates weighing, filling, sealing, sewing and conveying, is suitable for all kinds of small granular and powder materials.


Main features:

A new type of production control system: high precision and high-speed special metering control instrument, which has the characteristics of strong function, high reliability, greater flexibility and scalability, is fully suitable for the repeated and highly continuous production in the production process.

The powder bag packing machine has the functions of over impact suppression, automatic correction of drop, automatic alarm of out of tolerance, etc.

The machine is a new type of mechanical and electrical integration equipment. The powder bag packing machine adopts computer control technology and imported high-precision weighing sensor. It is made of 304 at the place where it contacts with the material.

The size of the bag clamping device can be changed, which can adapt to various sizes of packaging bags.

There are many kinds of material structure conveyor belts, such as chemical industry belt, plastic steel chain plate and so on.

There are industrial sewing machine and pneumatic hot sealing machine to choose from.

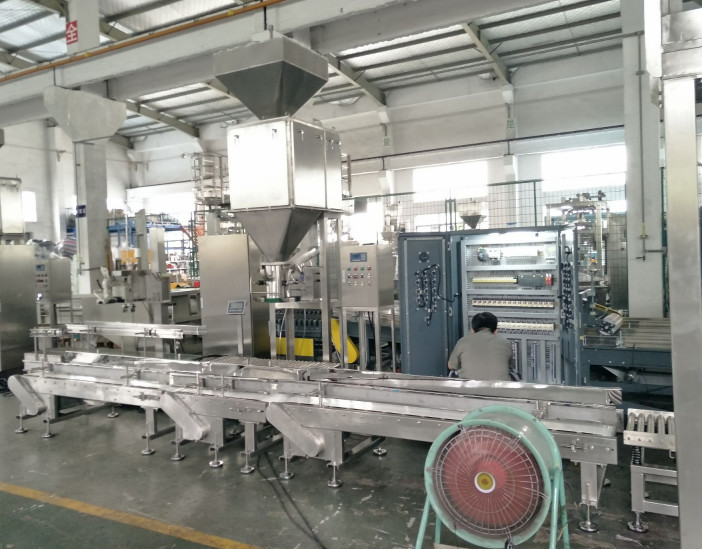

 Valve Bag Automatic Packing & Palletizing Line :

DCS-25V
Scope of application
Suitable materials
Granule and powder material with good flowability
Bag
Valve bag(automatic sealing bag)
Feeding type
Gravity
Alternative feeding type
Vibration
Technical parameters
Automatic supply bag machine
1
Number of packing scale
1
Feeding mouth
2
One swing bag can with maximum feeding mouth number
2
Weighing range(Kg)
25
Packing speed(bag/H)
200-600
Packing Accuracy
Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)


Q: Payment terms, MOQ, warranty, Trade Terms

A: Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid on delivery.

Minimum order quantity: 1 set, FOB Shanghai

Warranty: 12 months following delivery. We offer online service 24 hours all day long

You can contact us any time, if urgently, please call us.


Q: What’s the package ?

A: Most of goods are packed on wooden pallet


Q: Do you offer Installation & debugging?

A: Our engineers are available to service machinery overseas to help customers to solve machine problems.Relevant fees need to be paid



Q: What’s policy for guarantee and broken parts ?

A: As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.





Advantages  :

High accuracy
Easy clean out and maintence
After the machine installs you get hands on training and documentation
The air flow feed system is capable of high production rates while maintaining good accuracies.
Operator friendly easy set
Universal and industrial components give the machinery extra long life
