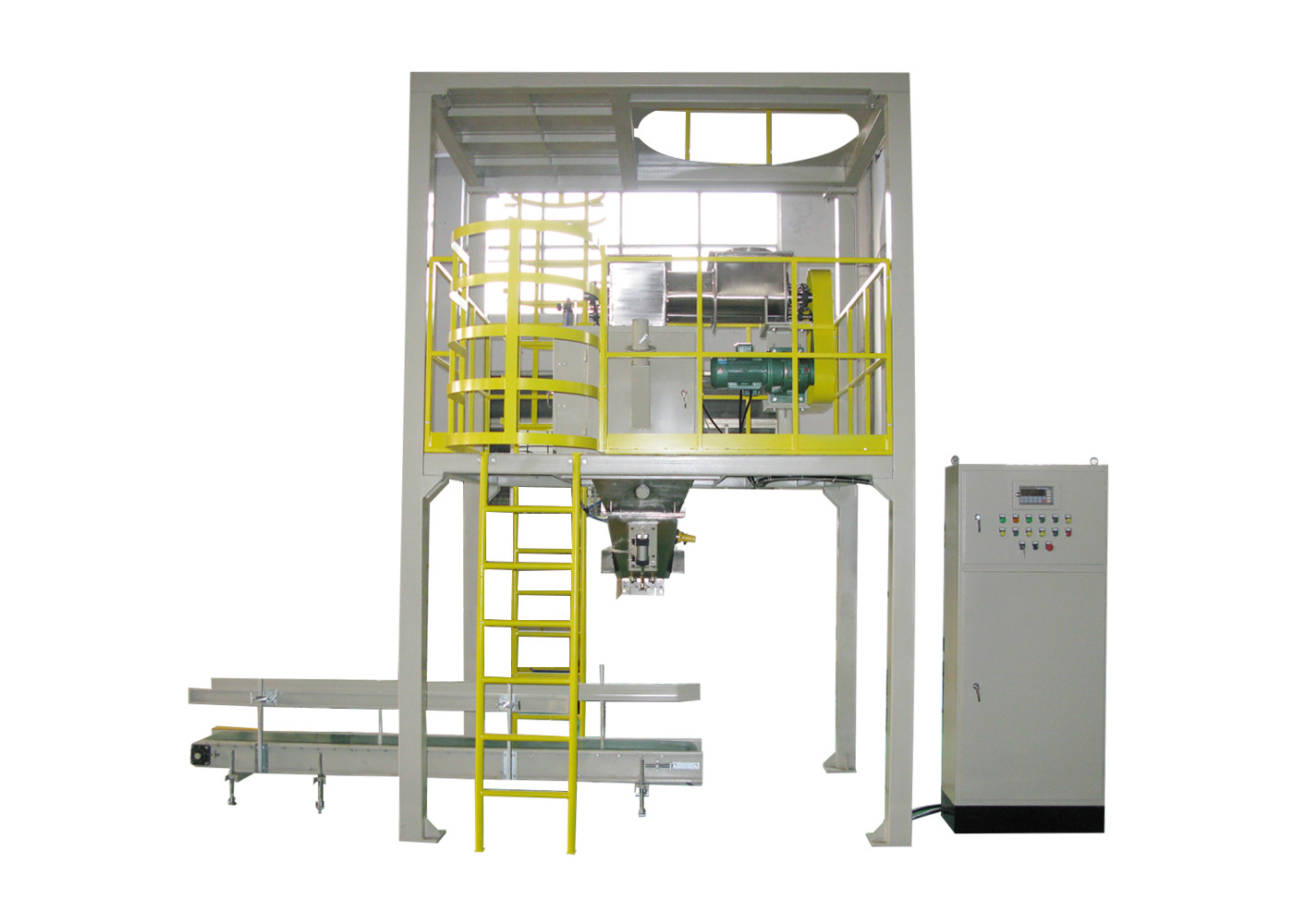

DCS-25 Packing Scale Machine Semi Automatic Weighing Package Machine
Process flow :
The Semi Automatic Weighing Packing Machine parameter and function table :
| DCS-25 Gross weight type for granules | |
| Scope of application | |
| Suitable materials | powder material or Fine powder |
| Suitable packing container | Open mouth bag, box, barrel |
| Feeding type | horizontal screw |
| Alternative feeding type | Vibrator, belt |
| Technical parameters | |
| Weighing range(Kg) | 25 |
| Packing speed(bag/H) | 100-200 |
| Packing Accuracy |
Generally (+/- )0.2% (Note: special materials shall depend on the industrial standard) |
Automatic Bagger FAQ :
1. Are all machinery your factory made?
Our factory make the filling machine,sealing machine,capping machine,conveyor,packaging machine,washing machine,labeling machine and some other machine.We don't make water purification and bottle making machine.
2. Are you manufactory or trading company?
We are industrial manufacturer,Which located in Taicang City.It is very near to shanghai.If you arrive at shanghai ,we can pick you up to visit our factory.
3. Do you have any technical supports?
Yes,We have a professional team of engineers who owned many installation,debug and training experiences abroad,are available to service machinery overseas.
4. How can I know the machinery quality before I order?
We will invite you visiting our factory to check the machines quality,and show the machine running for you in our factory.If you don't have time to visit our factory we will record the video for you and try our best meet your requirement.We also can provide different test certificate as your requirement.
|
DCS-25GO7N) net weight type for granules |
DCS-25(PO2G) Gross weight type for granules |
DCS-25(PO2N) Net weight type for powder |
DCS-25(PO4G) Vertical screw type |
|
|
Scope of application |
||||
|
Suitable materials |
Granular material or powder material with fine flowability |
powder material or Fine powder |
powder material |
|
|
Suitable packing container |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
|
Feeding type |
Gravity |
horizontal screw |
horizontal screw |
Vertical screw |
|
Alternative feeding type |
Vibrator |
Vibrator, belt |
Vibrator, belt |
× |
|
Technical parameters |
||||
|
Weighing range |
1-100 | 10-50 | 10-50 | 1-50 |
|
Packing speed(bag/H) |
300-800 | 100-200 | 100-500 | 100-180 |
|
Packing Accuracy |
Generally (+/- )0.2% ( Note: special materials shall depend on the industrial standard ) |
|||
|
Control function |
||||
|
Automatic tare |
○ | ○ | ○ | ○ |
|
Automatic quick and slow feeding |
○ | ○ | ○ | ○ |
|
Automatic free fall compensation |
○ | ○ | ○ | ○ |
|
Automatic minus deviation |
▲ | ▲ | ▲ | ▲ |
|
Automatic over weight alarms |
○ | ○ | ○ | ○ |
|
diagnosis failure |
○ | ○ | ○ | ○ |
|
Manual/Automatic mode conversation |
○ | ○ | ○ | ○ |
|
Communication port |
▲ | ▲ | ▲ | ▲ |
|
|
||||
|
Manual adjusting the height of bag |
○ | ○ | ○ | ○ |
|
Important auxiliary function |
||||
|
Arch break function of hopper |
× | ○ | ○ | ○ |
|
Vibration at the bottom of the bag |
▲ | ▲ | ▲ | ▲ |
|
Powder protection |
||||
|
Inflatable seal |
▲ | ▲ | ▲ | ▲ |
|
Negative pressure dusting(not contain duster) |
▲ | ○ | ○ | ○ |
|
Valve for leak-proof |
× | ▲ | ▲ | ▲ |
|
Safety protection |
||||
|
Electrostatic grounding |
▲ | ▲ | ▲ | ▲ |
| ▲ | ▲ | ▲ | ▲ | |
|
when lose power |
○ | ○ | ○ | ○ |
|
Emergency stop |
○ | ○ | ○ | ○ |
|
Ex-proof |
▲ | ▲ | ▲ | ▲ |
|
Original mode |
DCS-25 | DCS-25FW | DCS-25F | DCS-25FL |
|
Mark: “○”is standard function；“▲”is choose function ；“×”is not has function |
||||
Main specialty
