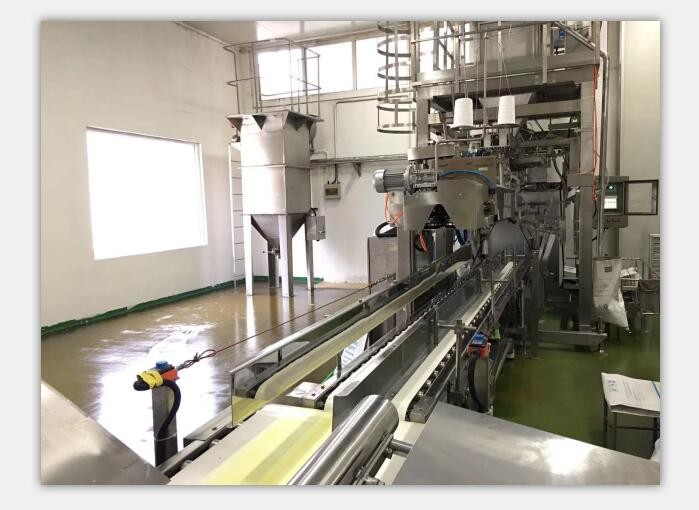

Auto Weighing 25kg Open Mouth Bag Packing Palletizing Line
Applicable material:
Non-sticky powder or particles.
Applicable filling containers:
Open mouth bag .
Models and Technical parameters:
Item |
Short Name |
Model Number |
Capacity(bags/hour) |
High speed type for granule |
OAPL-1200-25(2) |
1200 |
|
Medium speed type for granule |
OAPL-800-25(2) |
800 |
|
Low speed type for granule |
OAPL-300-25 |
300 |
|
Simple type for granule |
OAPL-150-25 |
150 |
|
High speed type for powder |
OAPL-600-25F(2) |
600 |
|
Medium speed type for powder
|
OAPL-450-25F |
450 |
|
Low speed type for powder
|
OAPL-300-25F |
300 |
|
Simple type for powder |
OAPL-150-25F |
150 |
Main Equipments composition
Item |
Equipment |
Quantity |
Automatic open mouth bag packer |
1 or 2 | |
Automatic empty bag feeder |
1 | |
Metal detector |
1 | |
Weight checker |
1 | |
Rejector |
1 | |
Filled bag reshaping Conveyor |
1 | |
conveyor |
Several |
|
Pallet magazine(include pallet feeder) |
1 | |

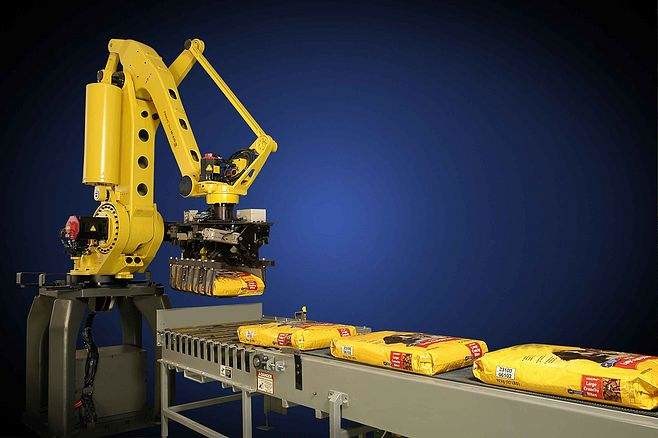

Robot |
1 | |
Power cabinet and Control cabinet |
1 |
Functions and Characteristics:
High degree of automation, Manually only need to put empty bags into the automatic empty bag feeder, empty pallets into the pallet magazine, all other processes are automatically completed by the equipments. The specific automation processes is as follows:
Automatic empty bag feeding;
Automatic weighing and filling;
Automatic valve mouth sealing;
Automatic filled bag unloading;
Automatic conveying;
Automatic metal detection;
Automatic weight check;
Automatic rejection;
Automatic filled bag shaping;
Automatic palletizing;
Automatic stack exit.
95% of China Silica (carbon black, white carbon black) factory use our packing machine.
Welcome your enquiry . Thank you
