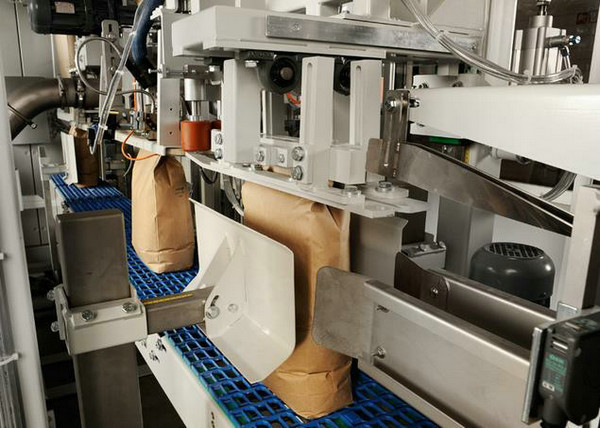

25kg Grain Flour Weighing Filling Packing Machine
Working principle of 25 kg electronic packaging scale:
When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;
At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.
The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.
Series: Impeller Feeder
This series of machines are designed for super fine powders and granules with medium to high bulk density and small parcel size. The unique impeller design allows for a fast and uniform feed flow to maintain a fast packing speed. Applicable materials include: Cement, Dry Mortar, Kieselquhr, Perlite Additive, Lime Carbonate and Siliceous Dust etc.
Packaging weight: 25 kg
Power consumption: 5 - 7. 5 KW
Our Services :
1. one year guarantee for whole machine except for wear parts;
2. 24 hours technical support by email;
3. calling service;
4. user manual available;
5. reminding for the service life of the wearing parts;
6. installation guide for clients from both China and abroad;
7. maintance and replacement service;
8. whole process trainling and guidance from our technicians.High quality of after-sales service symbolizes our brand and ability. We pursue not only good quality products, but also best after sales service. Your satisfaction is our final purpose.
FAQ :
1. Are you a trading company or a factory?
---We are factory sell directly, and welcome to visit our factory in Changshu city,Suzhou,Jiangsu Province China.
2. Can you guarantee the quality of your valve bag packing machine?
---We have passed CE&ISO9001, and our packing machines have been sent to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.
3. How many years have you been manufacturing this machine?
---Since the foudation of our company, we have been manufacturing the machine, which updated many times, now the machine runs stable and of high quality.
DCS-25GO7N) net weight type for granules |
DCS-25(PO2G) Gross weight type for granules |
DCS-25(PO2N) Net weight type for powder |
DCS-25(PO4G) Vertical screw type |
|
Scope of application |
||||
Suitable materials |
Granular material or powder material with fine flowability |
powder material or Fine powder |
powder material |
|
Suitable packing container |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Feeding type |
Gravity |
horizontal screw |
horizontal screw |
Vertical screw |
Alternative feeding type |
Vibrator |
Vibrator, belt |
Vibrator, belt |
× |
Technical parameters |
||||
Weighing range |
1-100 | 10-50 | 10-50 | 1-50 |
Packing speed(bag/H) |
300-800 | 100-200 | 100-500 | 100-180 |
Packing Accuracy |
Generally (+/- )0.2% ( Note: special materials shall depend on the industrial standard ) |
|||
Control function |
||||
Automatic tare |
○ | ○ | ○ | ○ |
Automatic quick and slow feeding |
○ | ○ | ○ | ○ |
Automatic free fall compensation |
○ | ○ | ○ | ○ |
Automatic minus deviation |
▲ | ▲ | ▲ | ▲ |
Automatic over weight alarms |
○ | ○ | ○ | ○ |
diagnosis failure |
○ | ○ | ○ | ○ |
Manual/Automatic mode conversation |
○ | ○ | ○ | ○ |
Communication port |
▲ | ▲ | ▲ | ▲ |
|
||||
Manual adjusting the height of bag |
○ | ○ | ○ | ○ |
Important auxiliary function |
||||
Arch break function of hopper |
× | ○ | ○ | ○ |
Vibration at the bottom of the bag |
▲ | ▲ | ▲ | ▲ |
Powder protection |
||||
Inflatable seal |
▲ | ▲ | ▲ | ▲ |
Negative pressure dusting(not contain duster) |
▲ | ○ | ○ | ○ |
Valve for leak-proof |
× | ▲ | ▲ | ▲ |
Safety protection |
||||
Electrostatic grounding |
▲ | ▲ | ▲ | ▲ |
▲ | ▲ | ▲ | ▲ | |
when lose power |
○ | ○ | ○ | ○ |
Emergency stop |
○ | ○ | ○ | ○ |
Ex-proof |
▲ | ▲ | ▲ | ▲ |
Original mode |
DCS-25 | DCS-25FW | DCS-25F | DCS-25FL |
Mark: “○”is standard function;“▲”is choose function ;“×”is not has function |
Main specialty
