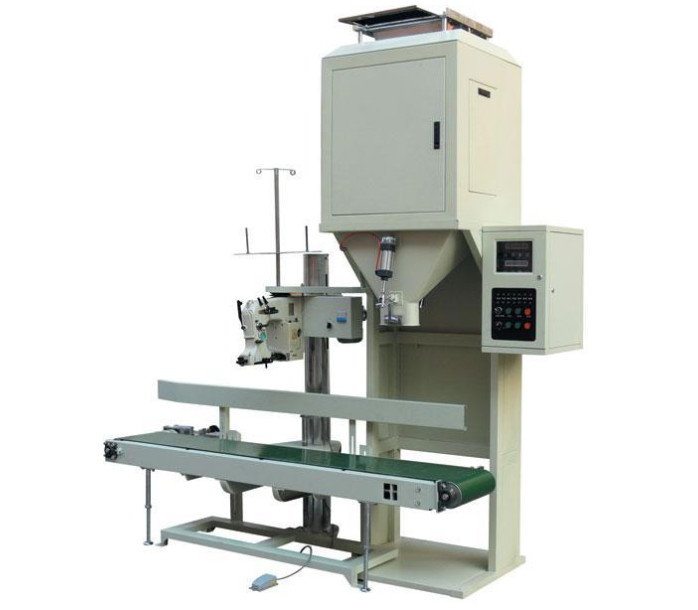

Digital Quantitative 25 Kg Bag Packing Machine
The parameter and function table :
| DCS-25(GO7N) Net weight type for granules | |
| Scope of application | |
| Suitable materials | Granular material or powder material with fine flowability |
| Suitable packing container | Open mouth bag, box, barrel |
| Feeding type | Gravity |
| Alternative feeding type | Vibrator |
| Technical parameters | |
| Weighing range(Kg) | 25 Kg |
| Packing speed(bag/H) | Packing speed 160-180bag/H(Gross weight) 200-300bags/H(Net weight) |
| Packing Accuracy | Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard) |
FAQ .
Please Send us The Details We Required :
1. Name of Material to Be Filled in Bag?
2. Weight Capacity of Single Bag ?
3. How Much Bag Fill Per Hour?
4. Your Materials Characte?
|
DCS-25GO7N) net weight type for granules |
DCS-25(PO2G) Gross weight type for granules |
DCS-25(PO2N) Net weight type for powder |
DCS-25(PO4G) Vertical screw type |
|
|
Scope of application |
||||
|
Suitable materials |
Granular material or powder material with fine flowability |
powder material or Fine powder |
powder material |
|
|
Suitable packing container |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
|
Feeding type |
Gravity |
horizontal screw |
horizontal screw |
Vertical screw |
|
Alternative feeding type |
Vibrator |
Vibrator, belt |
Vibrator, belt |
× |
|
Technical parameters |
||||
|
Weighing range |
1-100 | 10-50 | 10-50 | 1-50 |
|
Packing speed(bag/H) |
300-800 | 100-200 | 100-500 | 100-180 |
|
Packing Accuracy |
Generally (+/- )0.2% ( Note: special materials shall depend on the industrial standard ) |
|||
|
Control function |
||||
|
Automatic tare |
○ | ○ | ○ | ○ |
|
Automatic quick and slow feeding |
○ | ○ | ○ | ○ |
|
Automatic free fall compensation |
○ | ○ | ○ | ○ |
|
Automatic minus deviation |
▲ | ▲ | ▲ | ▲ |
|
Automatic over weight alarms |
○ | ○ | ○ | ○ |
|
diagnosis failure |
○ | ○ | ○ | ○ |
|
Manual/Automatic mode conversation |
○ | ○ | ○ | ○ |
|
Communication port |
▲ | ▲ | ▲ | ▲ |
|
|
||||
|
Manual adjusting the height of bag |
○ | ○ | ○ | ○ |
|
Important auxiliary function |
||||
|
Arch break function of hopper |
× | ○ | ○ | ○ |
|
Vibration at the bottom of the bag |
▲ | ▲ | ▲ | ▲ |
|
Powder protection |
||||
|
Inflatable seal |
▲ | ▲ | ▲ | ▲ |
|
Negative pressure dusting(not contain duster) |
▲ | ○ | ○ | ○ |
|
Valve for leak-proof |
× | ▲ | ▲ | ▲ |
|
Safety protection |
||||
|
Electrostatic grounding |
▲ | ▲ | ▲ | ▲ |
| ▲ | ▲ | ▲ | ▲ | |
|
when lose power |
○ | ○ | ○ | ○ |
|
Emergency stop |
○ | ○ | ○ | ○ |
|
Ex-proof |
▲ | ▲ | ▲ | ▲ |
|
Original mode |
DCS-25 | DCS-25FW | DCS-25F | DCS-25FL |
|
Mark: “○”is standard function；“▲”is choose function ；“×”is not has function |
||||
Main specialty
